01 - Cover Sheet
02 - Control Panel

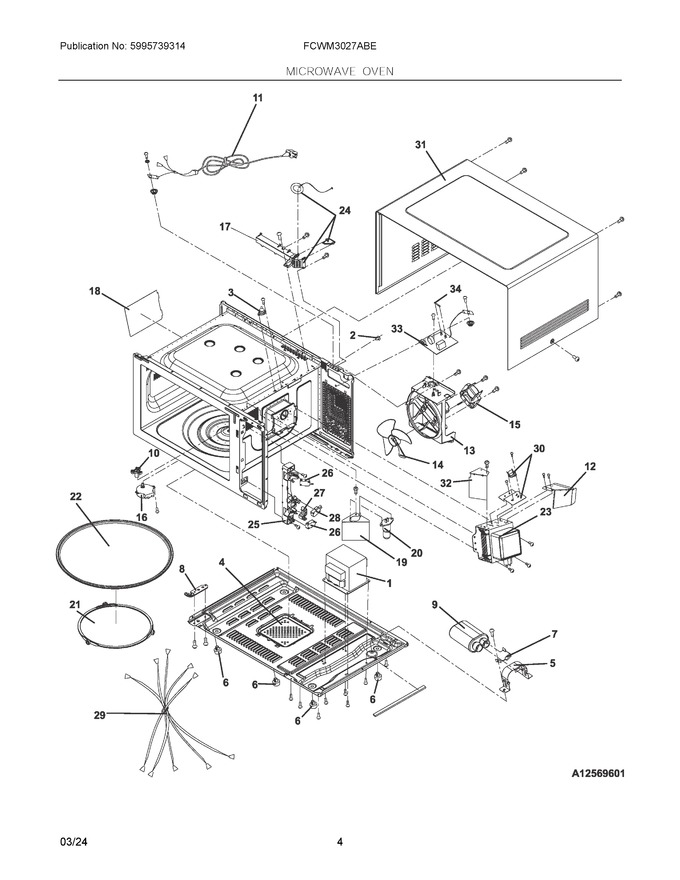

03 - Microwave Oven
04 - Lower Oven
05 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304513457 | Transformer, High Voltage |
|
$ 414.67 | |||||
| 2 | 5304520010 | Bracket, Stirrer |
|
- | |||||
| 3 | 5304520011 | Thermostat, 120/80h |
|
$ 17.35 | |||||
| 4 | 5304520012 | Base, Plate |
|
- | |||||
| 5 | 5304509477 | Retainer, Capacitor Strap |
|
- | |||||
| 6 | 5304505674 | Foot, Cabinet Support, Rubber |
|
$ 11.57 | |||||
| 7 | 5304513459 | Diode, High Voltage |
|
Immediately | $ 30.37 | ||||
| 8 | 5304519320 | Hinge, Door, Lower |
|
- | |||||
| 9 | 5304520013 | Capacitor, High Voltage |
|
Immediately | $ 121.84 | ||||
| 10 | 5304520014 | Coupler, Turntable Tray |
|
- | |||||
| 11 | 5304520015 | Power Cord, Service |
|
$ 106.27 | |||||
| 12 | 5304513477 | Guide, Air, Magnetron |
|
$ 21.55 | |||||
| 13 | 5304519349 | Guide, Fan |
|
- | |||||
| 14 | 5304519350 | Blade, Fan |
|
$ 16.92 | |||||
| 15 | 5304509471 | Motor, Cooling Fan |
|
Immediately | $ 150.42 | ||||
| 16 | 5304518905 | Motor, Turntable |
|
$ 56.10 | |||||
| 17 | 5304520016 | Guide, Wind, Plastic |
|
- | |||||
| 18 | 5304505675 | Cover, Waveguide |
|
$ 11.57 | |||||
| 19 | 5304520017 | Cover, Transformer, Wind Guide |
|
- | |||||
| 20 | 5304528944 | Lamp, Assembly (Replaces: 5304514246) |
|
Immediately | $ 83.86 | ||||
| 21 | 5304505673 | Support, Turntable, With Rollers |
|
$ 45.40 | |||||
| 22 | 5304509621 | Tray, Turntable |
|
$ 154.61 | |||||
| 23 | 5304513456 | Magnetron, High Voltage |
|
$ 283.53 | |||||
| 24 | 5304520018 | Sensor, Assembly |
|
- | |||||
| 25 | 5304519341 | Bracket, Latch |
|
Immediately | $ 25.88 | ||||
| 26 | 5304520019 | Microswitch |
|
$ 25.50 | |||||
| 27 | 5304519342 | Lever, Latch |
|
$ 7.28 | |||||
| 28 | 5304520021 | Microswitch, Monitor |
|
Immediately | $ 16.68 | ||||
| 29 | 5304520022 | Harness, Wiring, Main |
|
$ 117.69 | |||||
| 30 | 5304515183 | Thermostat, Assembly, W/bracket |
|
Immediately | $ 29.59 | ||||
| 31 | 5304520023 | Wrapper, Outer Cabinet |
|
- | |||||
| 32 | 5304520024 | Cover, Wind Guide |
|
- | |||||
| 33 | 5304525109 | Filter, Noise, Electronic (Replaces: 5304512523) |
|
$ 86.00 | |||||
| 34 | 318647300 | Fuse Holder, Assembly, 412 #, 20a, W/fuse |
|
Immediately | $ 217.73 | ||||
| 26A | 5304509460 | Microswitch, Secondary (Replaces: 5304520020) |
|
Immediately | $ 45.27 |
