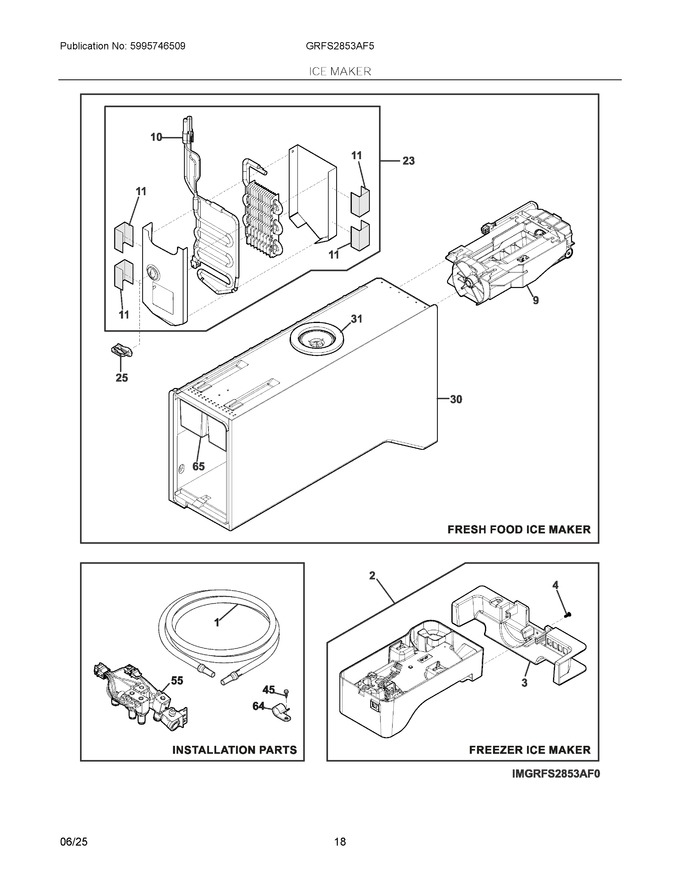

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976443 | Tube, Water, 23.62", Yellow, Valve, To Door |
|
Immediately | $ 14.41 | ||||
| 2 | A21755301 | Ice Maker, Assembly, Freezer, Twist Tray |
|
Immediately | $ 192.07 | ||||
| 3 | 5304531313 | Bracket, Ice Maker Block, White, Freezer |
|
$ 81.95 | |||||
| 4 | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 9 | 243297608 | Ice Maker, Assembly, Fresh Food, 115 V, Twist Tray |
|
Immediately | $ 164.41 | ||||
| 10 | 5304519629 | Clip, Heater/tubing |
|
$ 8.34 | |||||
| 11 | 5304485759 | Tape, 3" X 1", Foil |
|
$ 0.71 | |||||
| 23 | 140068083108 | Evaporator Assembly, Complete, Ff Ice Maker (Replaces: 5304530680) |
|
$ 83.57 | |||||
| 25 | 5304508037 | Connector, Harness , Evap Cover |
|
$ 14.41 | |||||
| 30 | 5304531299 | Housing Assembly, Ice Maker, White, Fresh Food |
|
$ 159.81 | |||||
| 31 | 140133592018 | Gasket-housing, Funnel |
|
- | |||||
| 45 | 5304453923 | Screw, Hex Hd Wshr, #8-32 X 1/2 |
|
- | |||||
| 55 | 4056027578 | Valve, Water , Quad Solenoid (Replaces: 5304530878) |
|
Immediately | $ 107.59 | ||||
| 64 | 240396801 | Clamp, Tube/wiring , 1/2", Nylon, Black/natural |
|
$ 19.13 | |||||
| 65 | 140126257066 | Cover, Wiring (Replaces: 5304530710) |
|
- | |||||
| NI | 218515401 | Clip, Grille/tube , & Hinge |
|
$ 17.72 | |||||
| NIA | 218709101 | Screw, Hex Head , 10-32 X 0.500 |
|
$ 6.38 | |||||
| NIA | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIA | 5303918645 | Thermistor Kit, Evaporator, W/connector |
|
Immediately | $ 84.60 | ||||
| NIA | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| NIB | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIB | 5304530732 | Harness, Wiring, Air Handler, W/evap Thrmistr |
|
Immediately | $ 61.73 | ||||
| NIB | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NIC | 5304535844 | Click Connex Female Green |
|
$ 10.77 | |||||
| NID | 5304535843 | Tube Assembly, Click Connex, Blue, Female |
|
Immediately | $ 10.77 |
