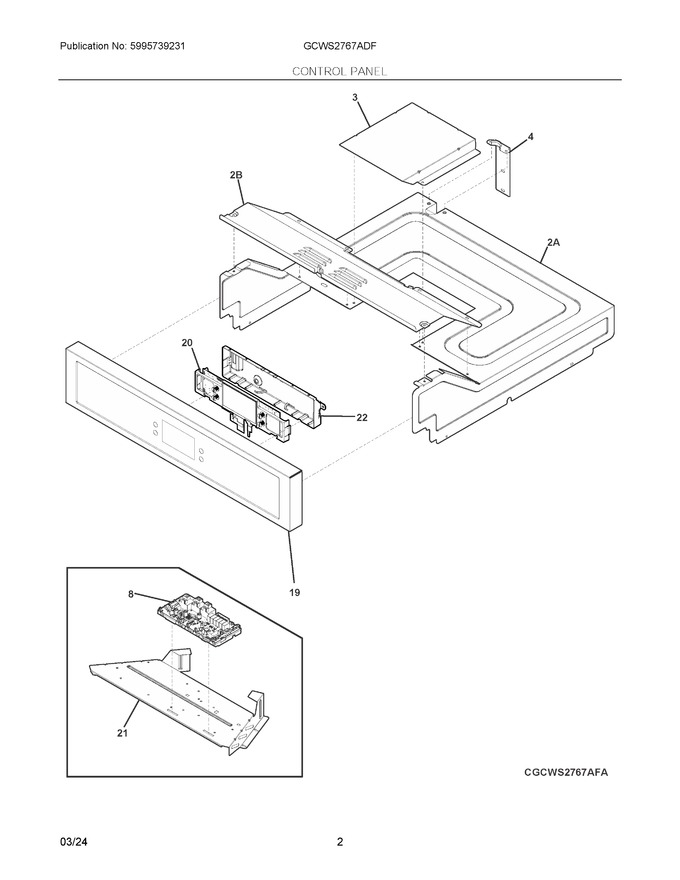

02 - Control Panel
03 - Body
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318577801 | Box, Fan Service |
|
- | |||||
| 4 | 5304532393 | Bracket, Conduit |
|
- | |||||
| 8 | 5304536397 | Board-ovc M Wo, 8 # |
|
Immediately | $ 139.97 | ||||
| 19 | 5304525828 | Control Panel, Assembly, Black Stainless |
|
$ 156.92 | |||||
| 20 | 5304537024 | Control-eoc Pux E Sc Swo Glry |
|
$ 175.50 | |||||
| 21 | 139028002 | Bracket, Mounting |
|
$ 38.37 | |||||
| 22 | 5304523582 | Housing, Controller |
|
Immediately | $ 34.13 | ||||
| 2A | 139003603 | Cover, Oven Top |
|
$ 69.99 | |||||
| 2B | 139003702 | Cover, Control Access |
|
$ 27.97 | |||||
| NI | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- | |||||
| NI | 5304532406 | Harness, Wiring, Low Voltage |
|
- | |||||
| NIA | 387872717 | Screw, M4, 2 X 10, Black, W/washer |
|
- | |||||
| NIA | 318165800 | Spacer, Glass, Foam |
|
$ 17.72 |
