Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11707351 Heater, Quartz Grill   (Replaces: W11601429) Appelez-nous -
2 W11593984 Assembly, Convection Special Order $ 229.02

3 W11707190 Rack, Wire   (Replaces: W11600706) Special Order $ 36.14

4 W11707191 Basket, Air Fry   (Replaces: W11600707) Special Order $ 92.29

5 W11707330 Spring, Antenna   (Replaces: W11632382) Special Order $ 32.77

6 W11658672 Motor, Stirring Special Order $ 36.23

7 W11707338 Connector, Heating Plate   (Replaces: W11590208) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

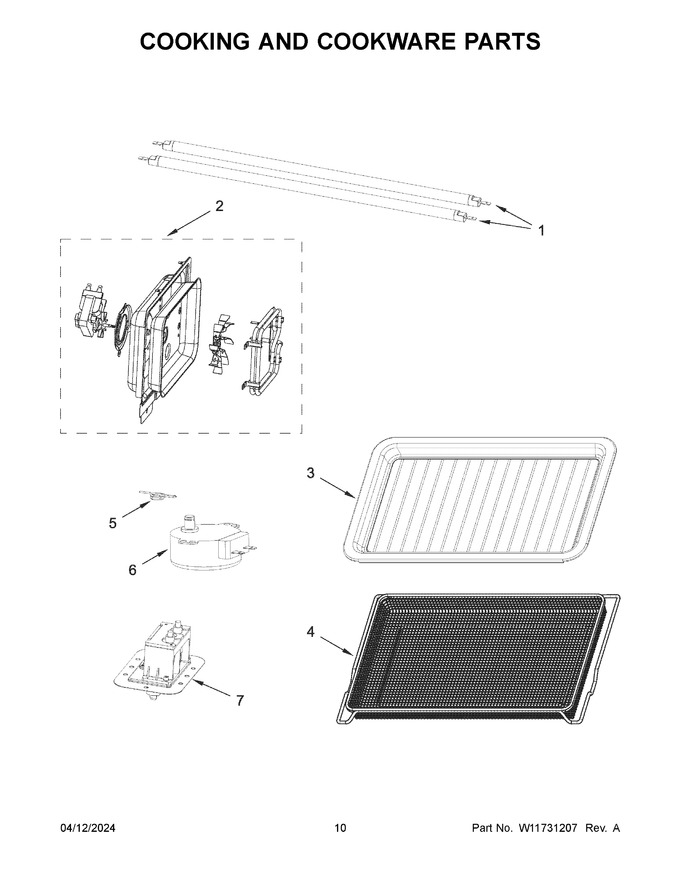

Diagram for WMMF7330RV00
