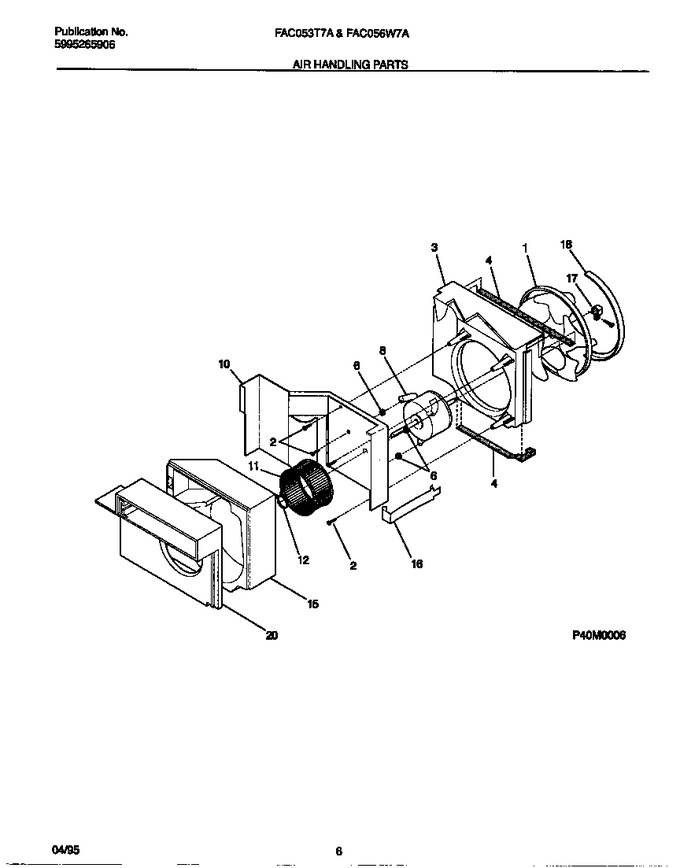

01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270893 | Fan Blade & Clamp |
|
$ 132.46 | |||||
| 2 | 3202975 | Screw |
|
- | |||||
| 3 | 5303270041 | Shroud |
|
- | |||||
| 4 | 5303270043 | Seal-shroud Top & Bottom |
|
- | |||||
| 6 | 5300105402 | Grommet-motor, (3) |
|
- | |||||
| 8 | 5303308515 | Motor-fan |
|
- | |||||
| 10 | 309602401 | Bulkhead |
|
- | |||||
| 11 | 309603301 | Blower Wheel |
|
$ 57.65 | |||||
| 12 | 5303012110 | Clamp - Blower Wheel |
|
$ 8.14 | |||||
| 15 | 5303302851 | Scroll |
|
- | |||||
| 16 | 309100201 | Clip-scroll |
|
- | |||||
| 17 | 5308011040 | Clamp - Fan Blade |
|
- | |||||
| 18 | 5303270042 | Deflector-shroud |
|
- | |||||
| 20 | 5303303573 | Scroll Plate |
|
- |
