01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts

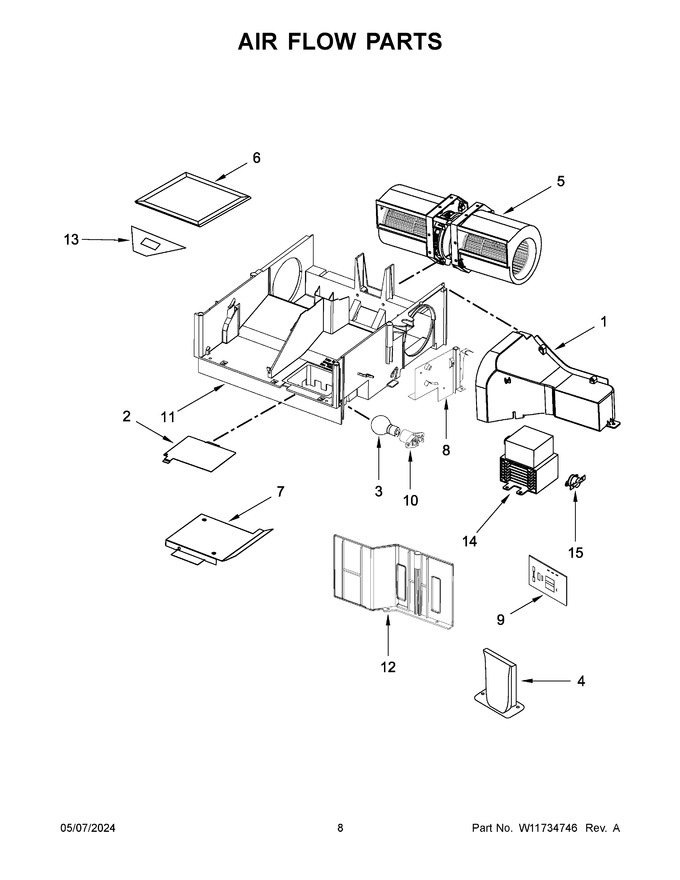

05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10471570 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 7.87 | |||||
| 3 | 8206232A | Bulb, Lamp (Replaces: 8206232) |
|
Immediately | $ 6.61 | ||||
| 4 | W11381953 | Plate, Waterproof |
|
- | |||||
| 5 | W11441128 | Motor, Hood Fan (Replaces: W11409094) |
|
Immediately | $ 190.49 | ||||
| 6 | W10892387 | Filter, Charcoal (Replaces: W10845250) |
|
Immediately | $ 15.95 | ||||
| 7 | W10138797 | Guide, Air |
|
$ 81.60 | |||||
| 8 | W11293488 | Cover, Right Duct |
|
$ 72.07 | |||||
| 9 | W10422269 | Filter, Noise |
|
Immediately | $ 28.96 | ||||
| 10 | W10210871 | Holder, Lamp |
|
Immediately | $ 5.75 | ||||
| 11 | W10828030 | Baseplate, Air Guide |
|
$ 91.72 | |||||
| 12 | W11520832 | Shield, Finger |
|
- | |||||
| 13 | W10810142 | Socket, Motor Wire |
|
- | |||||
| 14 | WPW10693025 | Magnetron (Replaces: W10693025) |
|
Immediately | $ 166.55 | ||||
| 15 | W10832024 | Thermostat, Magnetron |
|
$ 77.93 |
