Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5304414117 Compr-mats 2r7u126a-6a Appelez-nous -
2 5303283877 Grommet,compressor Mtg ,(3) Appelez-nous -
3 5308006948 Nut,compressor Mtg ,(3) Appelez-nous -
6 5303002035 Gasket,terminal Cover Appelez-nous -
7 5303211011 Cover-terminal Appelez-nous -
8 5304413778 Overload-mra99811-694 Appelez-nous -
9 5303301734 Nut,terminal Cover Appelez-nous -
10 5303317601 Start Assist Kit,compressor Special Order $ 148.05

11 309637501 Evaporator Appelez-nous -
12 309637601 Condenser Appelez-nous -
13 5303302849 Tray-evaporator Appelez-nous -
14 5304413780 Base-compr/std Assy Comp 1403 Appelez-nous -
16 5303289577 Capillary Tube,cut-to-size Appelez-nous -
19 5303002664 Washer,compressor Mtg Appelez-nous -
20 5303002036 Spring-overload Appelez-nous -
21 5303295516 Washer,terminal Cover Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

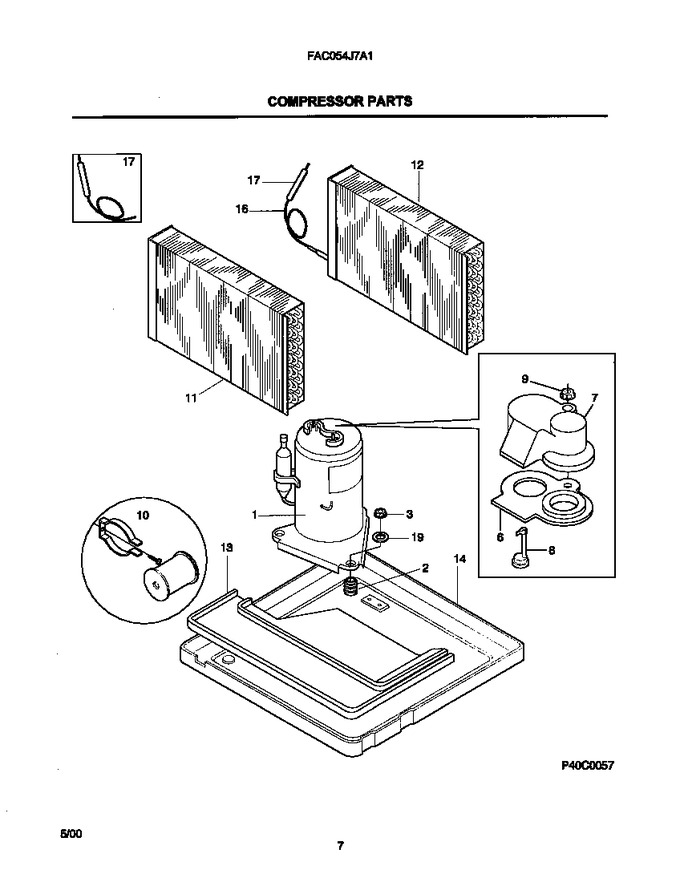

Diagram for FAC054J7A1
