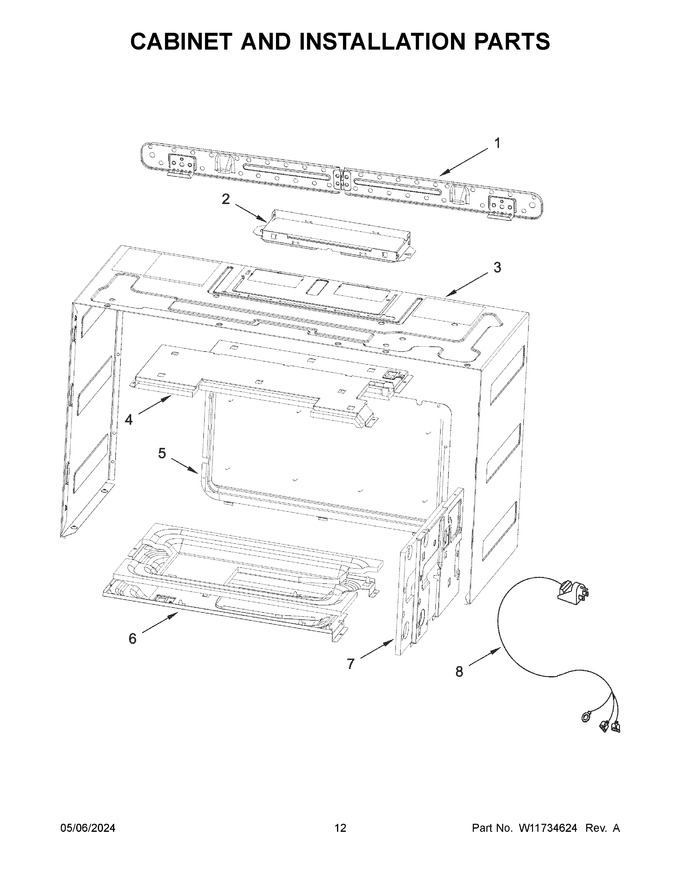

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11593197 | Plate, Mounting |
|
$ 17.19 | |||||
| 2 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 65.74 | ||||
| 3 | W11593183 | Case, Outer (black) |
|
$ 210.20 | |||||
| 4 | W11707376 | Insulation, Top Plate (Replaces: W11604266) |
|
- | |||||
| 5 | W11707555 | Insulation, Back Plate (Replaces: W11604250) |
|
- | |||||
| 6 | W11707564 | Insulation, Bottom Plate (Replaces: W11604255) |
|
- | |||||
| 7 | W11707566 | Insulation, Right Plate (Replaces: W11604258) |
|
- | |||||
| 8 | W11340990 | Cord, Power |
|
- | |||||
| NI | W11353989 | Miscellaneous Parts, Harness, Hood Led To Acu |
|
- | |||||
| NI | W11353973 | Miscellaneous Parts, Harness, Vent Motor To Acu |
|
- | |||||
| NI | W11353962 | Miscellaneous Parts, Harness, Door Hinge To Acu |
|
$ 45.55 | |||||
| NI | W11630300 | Miscellaneous Parts, Kit, Bump Out (for 15in Cabinet Depth) |
|
Immediately | $ 53.83 | ||||
| NI | W11707579 | Miscellaneous Parts, Harness, Meat Probe Socket (Replaces: W11303706) |
|
- | |||||
| NI | W11707577 | Miscellaneous Parts, Harness, Mimas To Acu (Replaces: W11602358) |
|
- | |||||
| NI | W11707572 | Miscellaneous Parts, Signal Harness, Door & Odm To Acu (Replaces: W11577230) |
|
$ 28.50 | |||||
| NI | W11707573 | Miscellaneous Parts, Signal Harness, Hmi To Door Hinge (Replaces: W11581994) |
|
$ 42.77 | |||||
| NI | W11707575 | Miscellaneous Parts, Harness, Main (Replaces: W11353956) |
|
- | |||||
| NI | W11707574 | Miscellaneous Parts, Signal Harness, Infrared Sensor To Acu (Replaces: W11353958) |
|
- | |||||
| NI | W11707570 | Miscellaneous Parts, Mounting Kit, Silicone Spacers (Replaces: W11683698) |
|
$ 11.76 | |||||
| NI | W11630290 | Miscellaneous Parts, Hardware, Installation |
|
Immediately | $ 10.23 | ||||
| NI | W11353979 | Miscellaneous Parts, Harness, Cavity Led To Acu |
|
- |
