01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Electrical Parts
05 - Wash System
06 - Tub & Frame

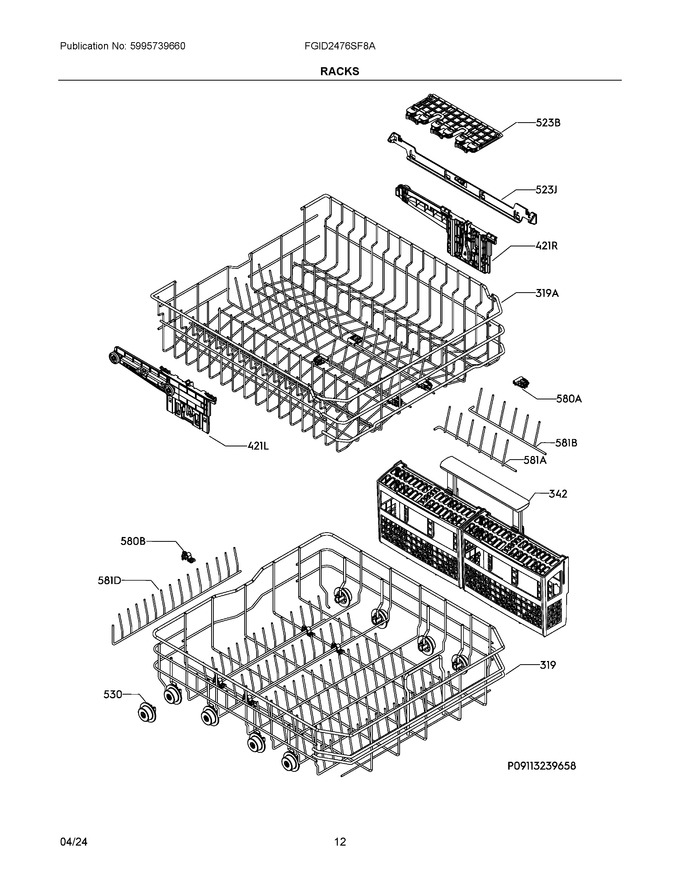

07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 319 | 140066296207 | Rack Assembly, Lower, Silver (Replaces: A06629603) |
|
$ 161.87 | |||||
| 342 | A00173209 | Cutlery Basket, Assembly, Grey (Replaces: A00173206) |
|
$ 106.65 | |||||
| 530 | 405507213 | Rack Roller, Kit, Lower |
|
$ 45.46 | |||||
| 319A | 5304536446 | Rack Assembly, Upper, Silver (Replaces: A00251510) |
|
$ 222.66 | |||||
| 421L | 4056024708 | Adjustment, Upper Rack, Lh (Replaces: 808092537) |
|
Immediately | $ 102.55 | ||||
| 421R | 808092538 | Adjustment, Upper Rack, Rh |
|
Immediately | $ 67.15 | ||||
| 523B | 808124102 | Shelf, Cup, Grey |
|
$ 171.00 | |||||
| 523J | 808138102 | Holder, Cup Shelf |
|
$ 59.54 | |||||
| 580A | A00141702 | Fixing Clamp, Partition, Upper |
|
$ 74.99 | |||||
| 580B | 807282902 | Clip, Partition, Lower Rack |
|
$ 65.92 | |||||
| 581A | A00237001 | Partition, Upper Rack, Lh |
|
$ 160.61 | |||||
| 581B | 807077101 | Partition, Upper Rack, Rh |
|
$ 156.64 | |||||
| 581D | A06542001 | Partition, Lower Rack |
|
$ 102.95 |
