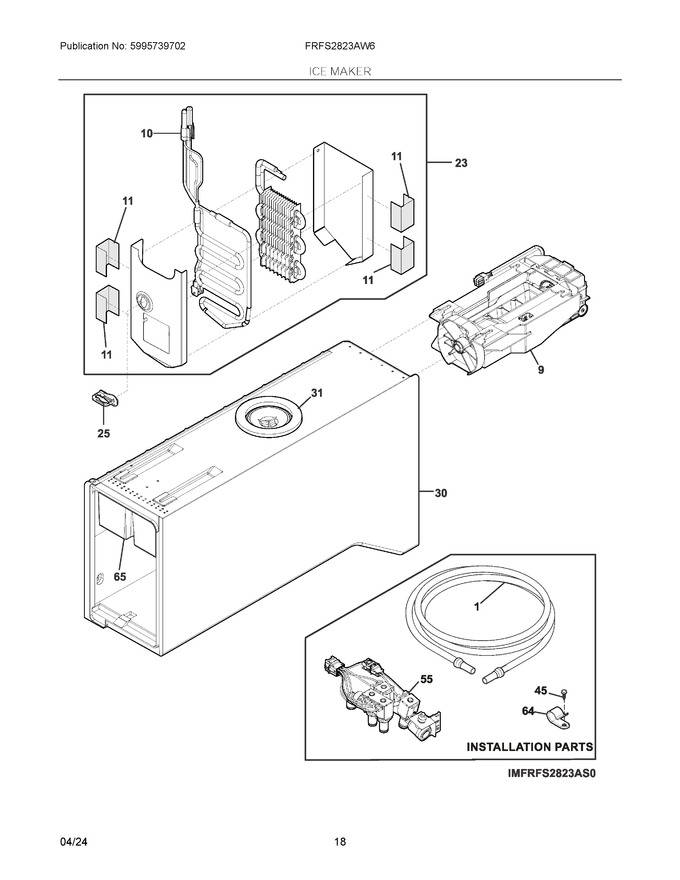

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976443		Tube, Water, 23.62", Yellow, Valve, To Door			Immediately	$ 14.41
4	5304453707		Screw, Quad Hilo, #8-18 X 0.50   (Replaces: 241953901)			Immediately	$ 15.92
9	243297608		Ice Maker, Assembly, Fresh Food, 115 V, Twist Tray			Immediately	$ 164.41
10	241829001		Bar-drive				$ 58.55
11	5304485759		Tape, 3" X 1", Foil				$ 0.71
23	140068083108		Evaporator Assembly, Complete, Ff Ice Maker   (Replaces: 5304530680)				$ 83.57
25	5304508037		Connector, Harness, Evap Cover				$ 14.41
30	5304531299		Housing Assembly, Ice Maker, White, Fresh Food				$ 159.81
31	241512813		Seal, Doughnut			Immediately	$ 6.82
45	5304453923		Screw, Hex Hd Wshr, #8-32 X 1/2		Appelez-nous	-
55	4056027578		Valve, Water, Quad Solenoid   (Replaces: 5304530878)			Immediately	$ 107.59
64	5304453921		Clamp-cable		Appelez-nous	-
65	140126257066		Cover, Wiring   (Replaces: 5304530710)		Appelez-nous	-
1A	5304535843		Tube, Water Valve, Blue, To Connector   (Replaces: 242220143)			Immediately	$ 10.77
NI	218515401		Clip, Grille/tube, & Hinge				$ 17.72
NIA	218709101		Screw, Hex Head, 10-32 X 0.500				$ 6.38
NIA	5303918645		Thermistor Kit, Evaporator, W/connector			Immediately	$ 84.60
NIA	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
NIB	241806601		Connector, Water Tube, 5/16 To 5/16, Straight   (Replaces: 242103001)			Immediately	$ 70.56
NIB	5304530732		Harness, Wiring, Air Handler, W/evap Thrmistr			Immediately	$ 61.73
NIB	240363602		Screw-shoulder				$ 13.65
NIC	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
NID	5304535844		Hose-water Valve To Connector, 1* #   (Replaces: 242220142)				$ 10.77
