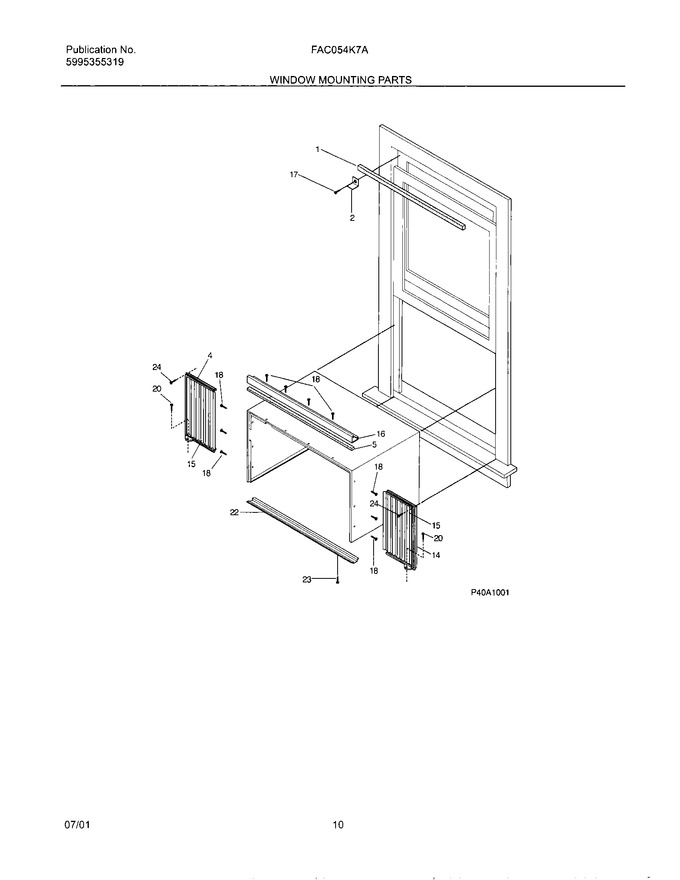

11 - Window Mounting


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304407729		Seal-window Frame,stuffer		Appelez-nous	-
2	5303211056		Bracket		Appelez-nous	-
4	5304414120		Extension-frame,lh ,w/accordian		Appelez-nous	-
5	08016226		Seal, Top Rail		Appelez-nous	-
15	5304414121		Extension-frame,rh ,with Accordian		Appelez-nous	-
15	309645501		Closure-accordion,lh/rh				$ 69.88
16	5304417362		Rail-top		Appelez-nous	-
17	3002803		Screw,wood, Type 17 ,10-12 X 0.750		Appelez-nous	-
18	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
20	5303295750		Screw,pan Head ,8-18 X 0.750		Appelez-nous	-
22	5304403252		Retainer,bottom		Appelez-nous	-
23	3001806		Screw,23(t) ,10-32 X 0.310		Appelez-nous	-
24	5308002974		Screw,wood, Type 17 ,8-15 X 0.500		Appelez-nous	-
NI	309644902		Frame-complete Assy				$ 133.56
