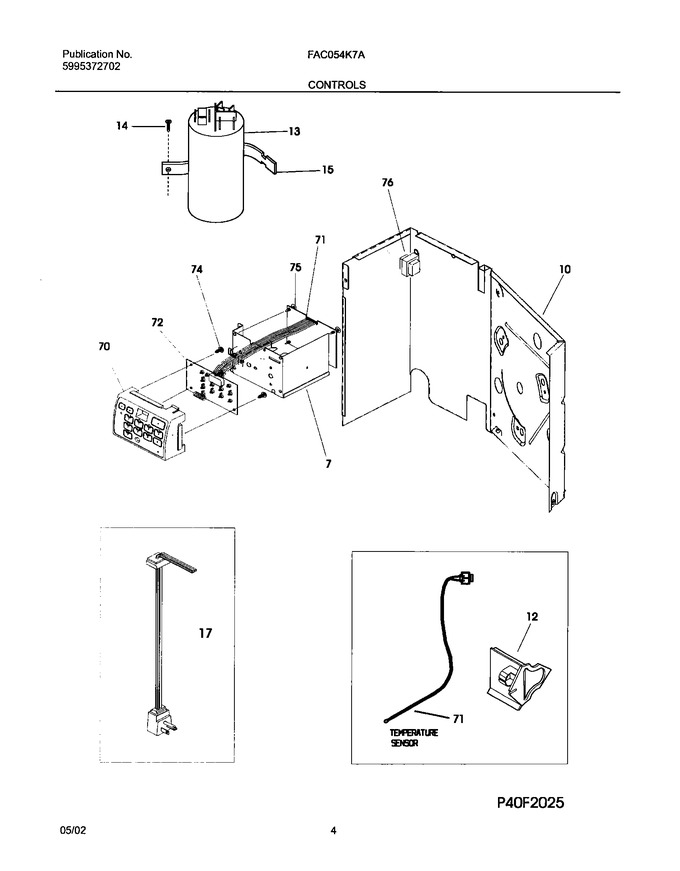

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309350301		No.control Box		Appelez-nous	-
10	309602404		Bulkhead		Appelez-nous	-
12	5304414108		Holder-thermistor,without Seal		Appelez-nous	-
12	5304413782		Holder,thermistor ,w/seal		Appelez-nous	-
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
15	5303303086		Strap-capacitor		Appelez-nous	-
70	309342201		Enclosure,elec Control Mt		Appelez-nous	-
71	309340503		Pc Board,power		Appelez-nous	-
72	309340505		Pc Board,input ,11.5 Mm Display		Appelez-nous	-
74	3201861		Screw,6-20ab X 0.38   (Replaces: 5303301590)				$ 0.76
75	5304413781		Support-pc Board		Appelez-nous	-
76	309111601		Transformer,120/12 Volt		Appelez-nous	-
F13	5304427231		Capacitor,370 V ,35+4 Microfarad		Appelez-nous	-
F17	309343101		Cord-electric Power,18 Awg ,115 V		Appelez-nous	-
NI	5303285199		Screw,ph Truss Hd ,8-18 X 0.38 ,grounding		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-
NI	5303302855		Cover-capacitor		Appelez-nous	-
NI	5304417643		Ribbon Protector		Appelez-nous	-
NI	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
