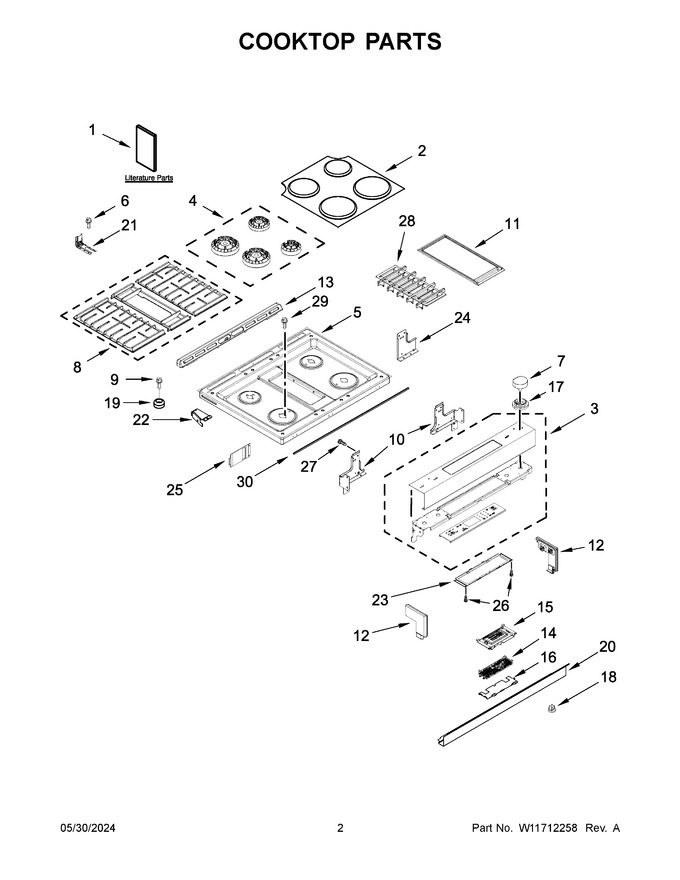

02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Blower Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11602521 | Owners Manual |
|
- | |||||
| 2 | W11834859 | Burner Cap Kit (black (set Of 4)) (Replaces: W11352138) |
|
- | |||||
| 3 | W11834912 | Console (stainless) (Replaces: W11606822) |
|
$ 457.43 | |||||
| 4 | W11671543 | Burner Kit (set Of 4) (Replaces: W11600788) |
|
$ 108.32 | |||||
| 5 | W11754708 | Cooktop (stainless) (Replaces: W11120004) |
|
$ 520.47 | |||||
| 6 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 7 | W11647016 | Knob (stainless) (Replaces: W11592981) |
|
$ 37.62 | |||||
| 8 | W11451474 | Grate Kit (black) (Replaces: W11382964) |
|
$ 312.78 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 10 | W10289170 | Bracket,support (left) (Replaces: W11563529) |
|
$ 25.76 | |||||
| 11 | W10432544 | Griddle |
|
Immediately | $ 51.00 | ||||
| 12 | W10557751 | Endcap (stainless (left)) |
|
$ 144.73 | |||||
| 13 | W11170796 | Trim, Vent (stainless) (Replaces: W10636529) |
|
Immediately | $ 121.73 | ||||
| 14 | W11802926 | Control, Mrc2 (Replaces: W11603774) |
|
$ 347.23 | |||||
| 15 | W11108634 | Display, Assembly (Replaces: W10759326) |
|
$ 505.38 | |||||
| 16 | W10558372 | Bracket, Control |
|
$ 21.51 | |||||
| 17 | W11752207 | Bezel (stainless) (Replaces: W11592976) |
|
$ 49.29 | |||||
| 18 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.28 | ||||
| 19 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 12.78 | ||||
| 20 | W10743281 | Console, Lower Panel (stainless) |
|
- | |||||
| 21 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 20.73 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 63.54 | |||||
| 23 | W10557780 | Bracket , Control |
|
$ 31.44 | |||||
| 24 | W10598048 | Bracket, Console (center) |
|
$ 22.05 | |||||
| 25 | W11158783 | Shield, Keypad |
|
- | |||||
| 26 | 7101P42860 | Screw, Handle |
|
- | |||||
| 27 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 6.98 | |||||
| 28 | ARI8E3A9E7766251EE00BB00F291A050F61 | Grill, Air (black) |
|
- | |||||
| 29 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 12.63 | ||||
| 30 | W11620671 | Gasket, Console And Cooktop (Replaces: W11512127) |
|
$ 21.53 | |||||
| 10A | W11563527 | Bracket, Support (right) |
|
- | |||||
| 12A | W10557754 | Endcap (stainless (right)) |
|
$ 144.73 | |||||
| 1A | W11565454 | Tech Sheet |
|
- | |||||
| 1B | W11615560 | Dimension Guide |
|
- | |||||
| 1C | W11602534 | Quick Start Guide |
|
- | |||||
| 1D | W11604189 | Control Guide |
|
- | |||||
| 1E | W11643128 | Downdraft Template (Replaces: W10817089) |
|
$ 12.35 | |||||
| 22A | W10162252 | Brace, Corner (right) |
|
$ 67.37 | |||||
| NI | W11198274 | Harness, Down Draft Fan Jumper |
|
$ 100.91 | |||||
| NI | W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 192.83 | ||||
| NI | W11451578 | Harness, Main |
|
- | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 48.02 |
