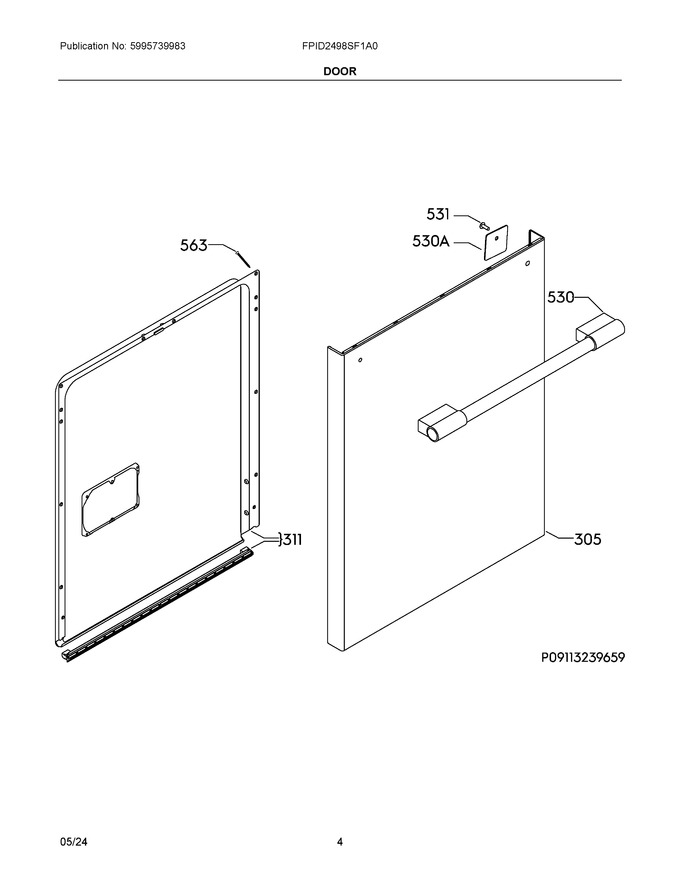

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
305	8581174951054		Outer Door, Stainless   (Replaces: 117495103)			Immediately	$ 164.80
311	A00010702		Liner, Door				$ 397.30
530	808816702		Handle, Door, 570mm, Inox				$ 302.63
531	154633601		Screw, Handle Mtg., (2)				$ 14.89
563	405538278		Screw Kit, Door, 3.5x13/19/40, (6/3/5 Pcs), Complete				$ 16.34
530A	405530675		Plate, Door Handle, (2)		Appelez-nous	-
NI	5304533456		Screw, Kickplate, 3-5 X 9, (2)   (Replaces: 405530674)				$ 3.50
NI	807952759		Mounting Kit			Immediately	$ 45.26
