| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

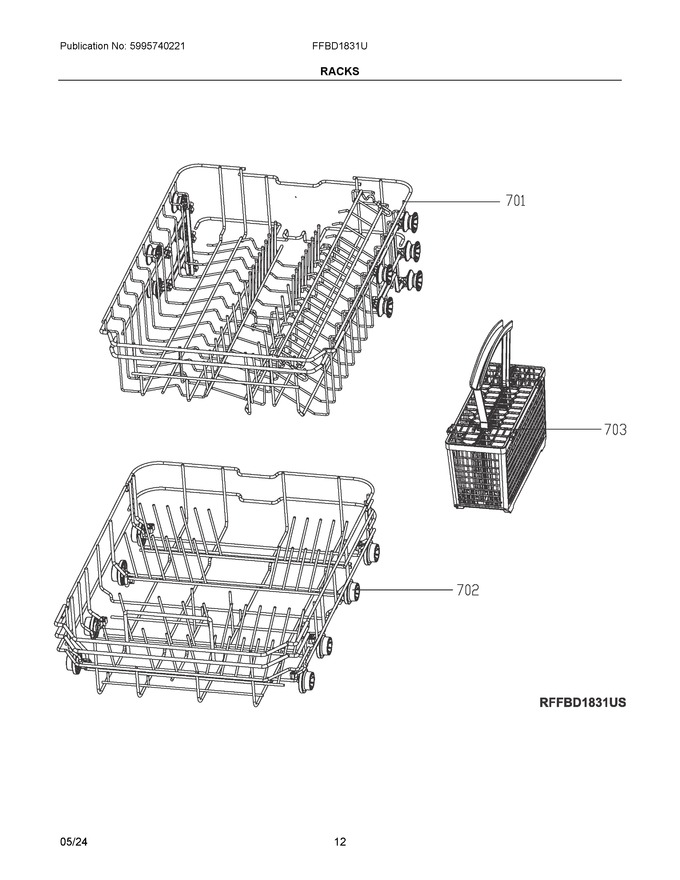

| 701 | 5304519285 | Rack Assembly, Upper, W/rollers |
|
$ 363.87 | |||||
| 702 | 5304519286 | Rack Assembly, Lower, W/rollers |
|
Immediately | $ 312.17 | ||||
| 703 | 5304519287 | Basket Assembly, Cutlery |
|
$ 61.16 |
