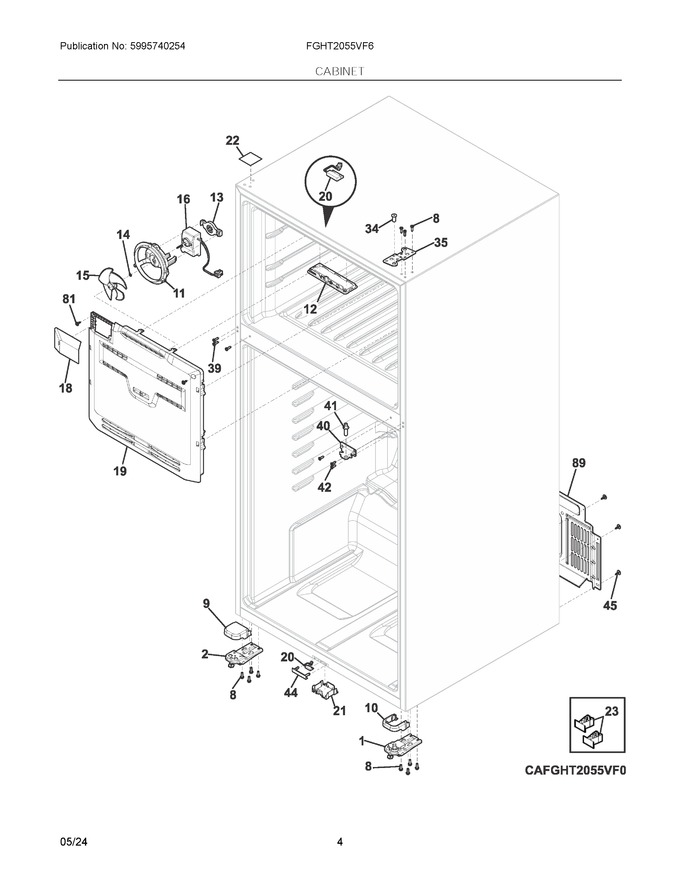

03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304528866 | Hinge Assembly, Bottom, Gray, Rh, W/pin-closer |
|
Immediately | $ 46.26 | ||||
| 2 | 5304519776 | Hinge Assembly, Bottom, Lh |
|
Immediately | $ 25.79 | ||||
| 8 | 5304522279 | Screw, Hex Wsh Hd Quad, M5 X 16 |
|
Immediately | $ 3.08 | ||||
| 9 | 5304522221 | Cover, Hinge, Gray, Lower, Non-hinged |
|
Immediately | $ 5.07 | ||||
| 10 | 5304522187 | Cover, Hinge Bearing, Gray |
|
Immediately | $ 7.44 | ||||
| 11 | 5304519752 | Shroud, Evaporator Fan |
|
Immediately | $ 21.23 | ||||
| 12 | 5304530332 | Light Assembly, Led, 1x, W/lens, Pcb, Harn |
|
$ 45.10 | |||||
| 13 | 242287501 | Grommet, Evaporator Fan, Rear |
|
Immediately | $ 17.72 | ||||
| 14 | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 15 | 242219302 | Fan Blade, Evaporator |
|
Immediately | $ 17.44 | ||||
| 16 | 242219206 | Motor, Evaporator Fan, Blower |
|
Immediately | $ 161.62 | ||||
| 18 | 5304519662 | Cover, I/m Connector |
|
Immediately | $ 5.96 | ||||
| 19 | 5304519654 | Cover Assembly, Evaporator, W/frz Slide |
|
Immediately | $ 127.76 | ||||
| 20 | 5304527992 | Switch, Reed (Replaces: 242326001) |
|
Immediately | $ 81.69 | ||||
| 21 | 5304523792 | Cover, Housing, Reed Switch |
|
Immediately | $ 7.96 | ||||
| 22 | 5304524036 | Label, Blank, Gray, Qr Code |
|
Immediately | $ 3.55 | ||||
| 23 | 5304523302 | Clip, Wiring Harness |
|
- | |||||
| 34 | 5304528871 | Pin, Hinge, Upper Door |
|
$ 9.10 | |||||
| 35 | 5304528870 | Hinge, Upper, Gray, Freezer Door, Reversable |
|
$ 21.23 | |||||
| 39 | 5304522253 | Screw, Pan Hd Qdrx Tri, M5 X 12 |
|
$ 3.03 | |||||
| 40 | 5304522100 | Hinge, Door, Gray, Center |
|
Immediately | $ 22.50 | ||||
| 41 | 5304519642 | Pin, Center Hinge, Door |
|
Immediately | $ 5.31 | ||||
| 42 | 5304522279 | Screw-flt Hd M5x16 Qdrx (Replaces: 5304537117) |
|
Immediately | $ 3.08 | ||||
| 44 | 5304524130 | Cover, Reed Switch, Front |
|
$ 10.63 | |||||
| 45 | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.03 | |||||
| 81 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 | ||||
| 89 | 5304522114 | Access Cover, Rear |
|
$ 34.25 | |||||
| NI | 242039703 | Screw, Type Ab, #10-16 |
|
- | |||||
| NI | 30534600 | Clip, Plastic, W/adhesive |
|
$ 3.79 | |||||
| NIA | 5304524219 | Spacer, Center Hinge, Clear |
|
Immediately | $ 6.82 |
