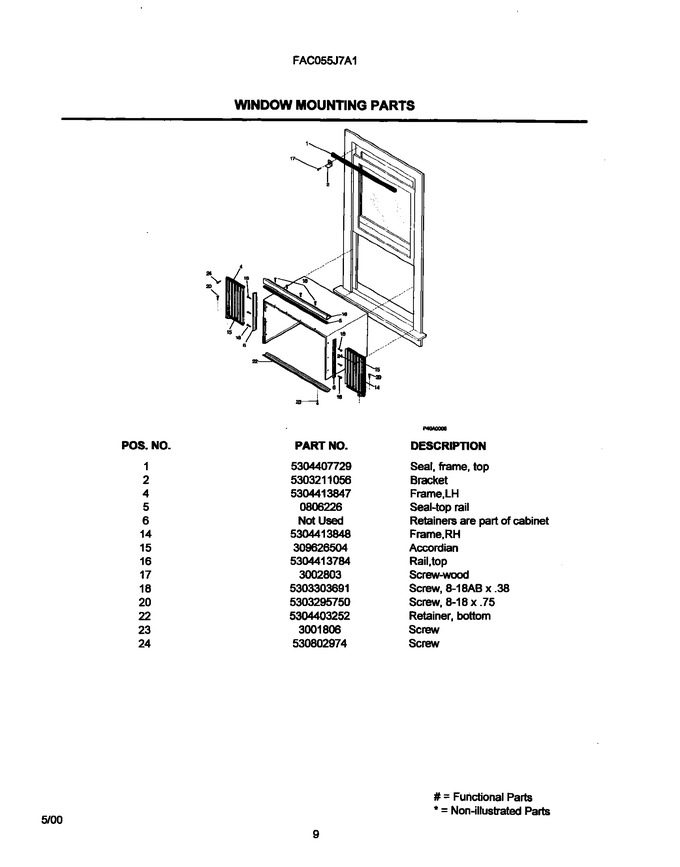

09 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304407729		Seal-window Frame,top		Appelez-nous	-
2	5303211056		Bracket		Appelez-nous	-
4	5304413847		Frame-lh		Appelez-nous	-
5	0806226		Seal-top Rail		Appelez-nous	-
6	NOT USED		Retainers Are Part Of Cabinet		Appelez-nous	-
14	5304413848		Frame-rh		Appelez-nous	-
15	309626504		Accordian		Appelez-nous	-
16	5304413784		Rail,top		Appelez-nous	-
17	3002803		Screw-wood		Appelez-nous	-
18	5303303691		Screw, 8-18ab X 0.38		Appelez-nous	-
20	5303295750		Screw, 8-18 X 0.75		Appelez-nous	-
22	5304403252		Retainer,bottom		Appelez-nous	-
23	3001806		Screw		Appelez-nous	-
24	530802974		Screw		Appelez-nous	-
