New Model Search:

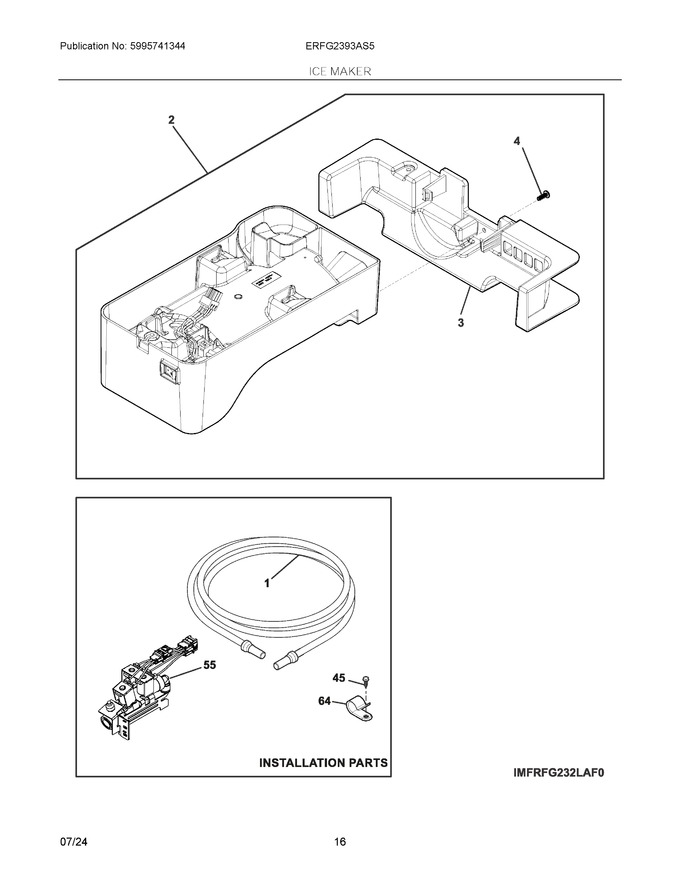

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976443 | Tube, Water, 23.62", Yellow, Valve, To Door |
|
Immediately | $ 14.41 | ||||
| 2 | 5304532932 | Ice Maker, Assembly, Gray, Freezer, Twist Tray |
|
$ 185.07 | |||||
| 3 | 5304532931 | Bracket, Ice Maker Block, Gray, Freezer |
|
- | |||||
| 4 | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 45 | 5304453923 | Screw, Hex Hd Wshr, #8-32 X 1/2 |
|
- | |||||
| 55 | 5304538492 | Valve, Water, Triple Solenoid (Replaces: 5304525994) |
|
Immediately | $ 88.59 | ||||
| 64 | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| 65 | 5304453921 | Clamp-cable |
|
- | |||||
| NI | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| NI | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 17.72 | |||||
| NI | 241500305 | Screw, Hex Head, #8-18x5/8 (Replaces: 241853202) |
|
$ 3.03 | |||||
| NIA | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIA | 218976830 | Tube, Water, 32.09", Blue, Valve, To Ice Maker |
|
Immediately | $ 24.74 |
