01 - Cover Sheet

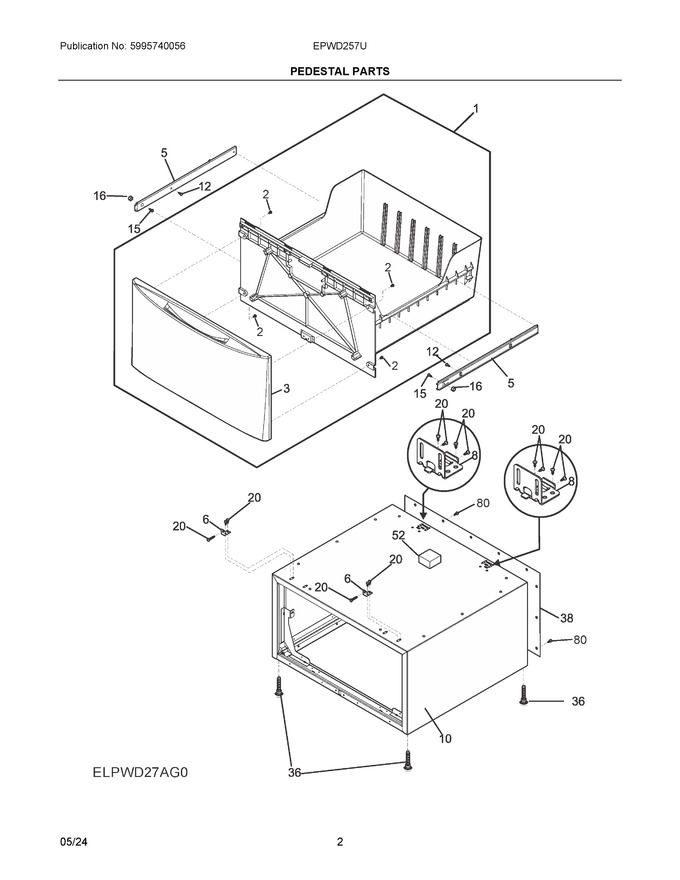

02 - Pedestal Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134862485 | Drawer, Pedestal, White, Includes 3 |
|
- | |||||
| 2 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 3 | 5304518475 | Panel, Drawer Front, White |
|
$ 204.00 | |||||
| 4 | 134442340 | Divider, Drawer, Inner |
|
$ 109.86 | |||||
| 5 | 134443700 | Slide, Drawer Track, (2) |
|
$ 132.40 | |||||
| 6 | 5304523385 | Bracket, Mounting, Front (Replaces: 134830300) |
|
Immediately | $ 30.90 | ||||
| 8 | 5304523385 | Bracket, Mounting, Rear (Replaces: 134816300) |
|
Immediately | $ 30.90 | ||||
| 10 | 137006182 | Cabinet, Pedestal, White |
|
- | |||||
| 12 | 5308014215 | Screw, Sheet Metal, 6-20 X 0.375, (2) (Replaces: 134477400) |
|
$ 2.28 | |||||
| 15 | 134509900 | Screw, Machine, 6-32 X 0.625, (2) |
|
$ 14.18 | |||||
| 16 | 134510400 | Nut, Locking, 6-32, (2), Nylon Insert |
|
$ 17.64 | |||||
| 20 | 134549700 | Screw, 10-16 X 0.500, (28) |
|
Immediately | $ 12.29 | ||||
| 36 | 131841600 | Leveling Leg Assy, Bolt, Pad & Nut |
|
$ 29.06 | |||||
| 38 | 134802700 | Panel, Back |
|
- | |||||
| 52 | 131931202 | Dampener, Vibration, Foam |
|
$ 17.35 | |||||
| 80 | 131168200 | Screw, 10-16ab X 0.375 (Replaces: 134547800) |
|
Immediately | $ 14.18 | ||||
| NI | 5304523385 | Installation Kit, Mtg Hardware (Replaces: 137335500) |
|
Immediately | $ 30.90 | ||||
| NI | 5304537789 | Pad Kit, Non-skid, W/template |
|
- |
