SELECT A DIAGRAM

01 - Cover Sheet

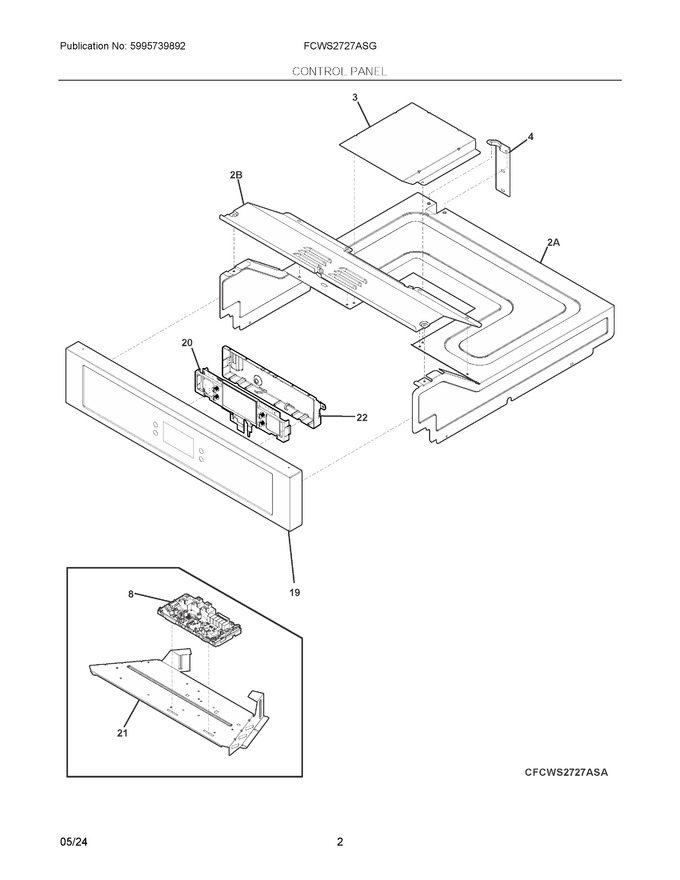

02 - Control Panel


03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318577801		Box, Fan Service		Appelez-nous	-
4	5304532393		Bracket, Conduit		Appelez-nous	-
8	5304536397		Board-ovc M Wo, 8 #			Immediately	$ 139.97
19	5304537029		Control Asm-e Ss Ui700s 27 Wo		Appelez-nous	-
20	5304537022		Control-eoc Pux E Sc Swo Frig				$ 175.50
21	139028002		Bracket, Mounting				$ 38.37
22	5304526426		Bracket-support Control Pux		Appelez-nous	-
2A	139003603		Cover, Oven Top				$ 69.99
2B	139003702		Cover, Control Access				$ 27.97
NI	5304532407		Harness, Wiring, Low Voltage		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NIA	318165800		Spacer, Glass, Foam				$ 17.72

    View Diagram in Separate Window       Print Part List
