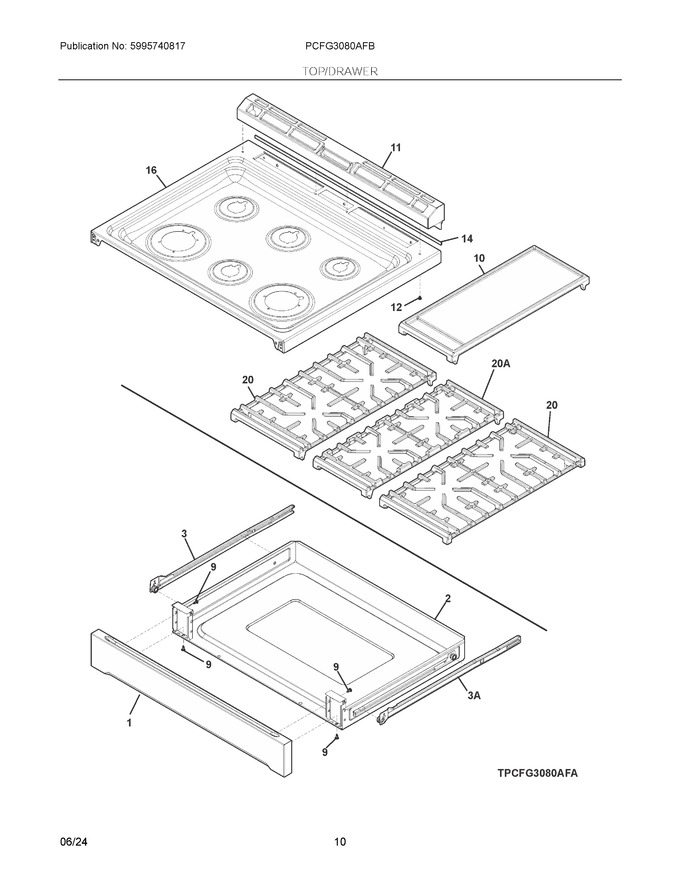

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304528223		Panel, Drawer, Ez Care Stainless, Outer				$ 112.77
2	5304528242		Drawer Assembly, W/glides			Immediately	$ 99.52
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 21.34
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
10	5304536512		Griddle, Black				$ 126.66
11	5304528496		Trim, Vent, Stainless, Rear				$ 139.42
12	5304533410		Screw, M4.2x7x1.06, Black		Appelez-nous	-
14	5304535138		Seal, Maintop		Appelez-nous	-
16	5304528381		Maintop, Assembly, Stainless				$ 123.08
20	5304536584		Grate, Side, Black			Immediately	$ 76.90
20A	5304536585		Grate, Center, Black			Immediately	$ 86.63
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 21.34
NI	316089500		Screw, 10-16 X .486				$ 13.46
