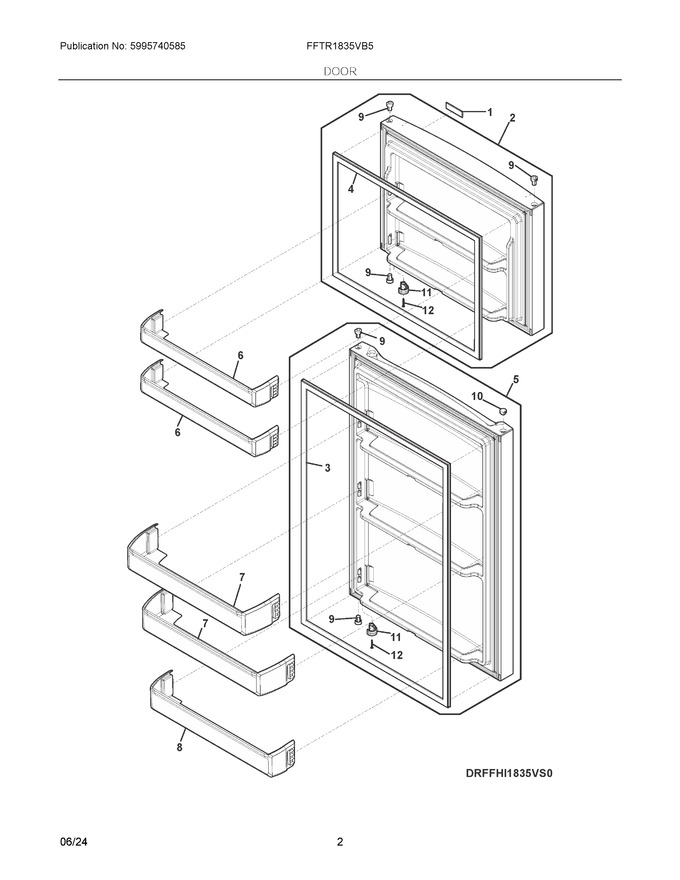

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304511145		Badge, Frigidaire, Black				$ 4.55
2	5304529518		Door Assembly, Frzr Door		Appelez-nous	-
3	5304528905		Gasket, Door, Black, Fresh Food				$ 205.12
4	5304528906		Gasket, Door, Black, Freezer			Immediately	$ 186.95
5	5304529512		Door Assembly, Black, Ff Door		Appelez-nous	-
6	5304519702		Bin, Door, White, Freezer			Immediately	$ 50.63
7	5304522123		Bin, Door, 6", White, Refrigerator			Immediately	$ 70.75
8	5304519703		Bin, Door, 4", White, Refrigerator			Immediately	$ 22.42
9	5304522193		Bearing, Hinge, Black				$ 7.59
10	5304522186		Cover, Hinge Bearing, Black		Appelez-nous	-
11	5304522237		Hook, Door Closer, Black				$ 4.55
12	241953905		Screw, 8-18 X 1.25			Immediately	$ 11.38
