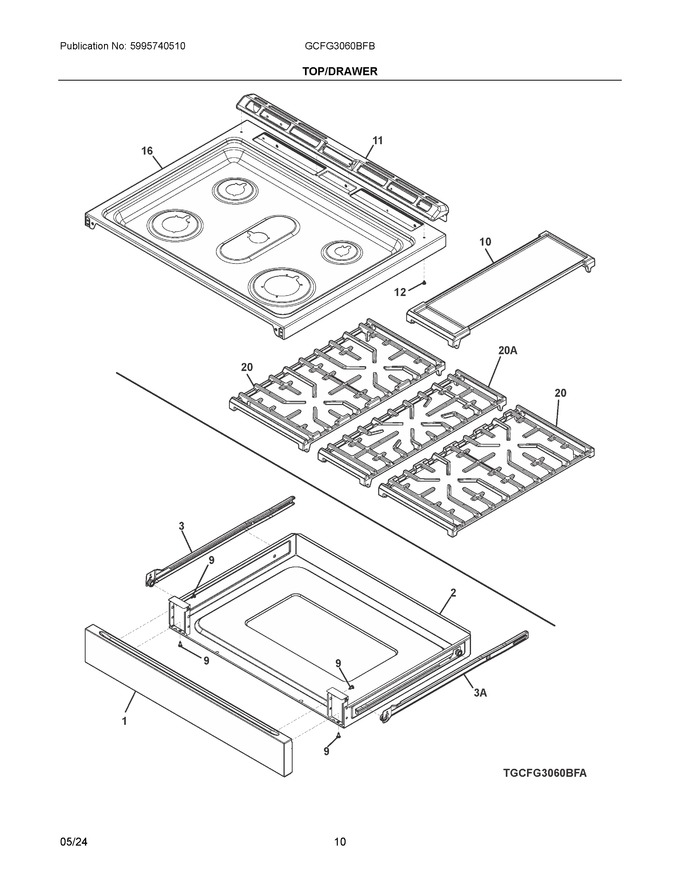

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304528223		Panel, Drawer, Ez Care Stainless, Outer				$ 112.77
2	5304528242		Drawer Assembly, W/glides			Immediately	$ 99.52
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 21.34
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
10	5304533880		Griddle, Gallery				$ 142.81
11	5304534686		Trim, Rear Vent, Black				$ 97.16
12	5304533410		Screw, M4.2x7x1.06, Black		Appelez-nous	-
16	5304534675		Maintop, Assembly, Black				$ 173.74
20	5304535283		Grate, Burner, Side				$ 138.08
20A	5304535284		Grate, Burner, Center			Immediately	$ 83.01
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 21.34
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46

    View Diagram in Separate Window       Print Part List
