View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

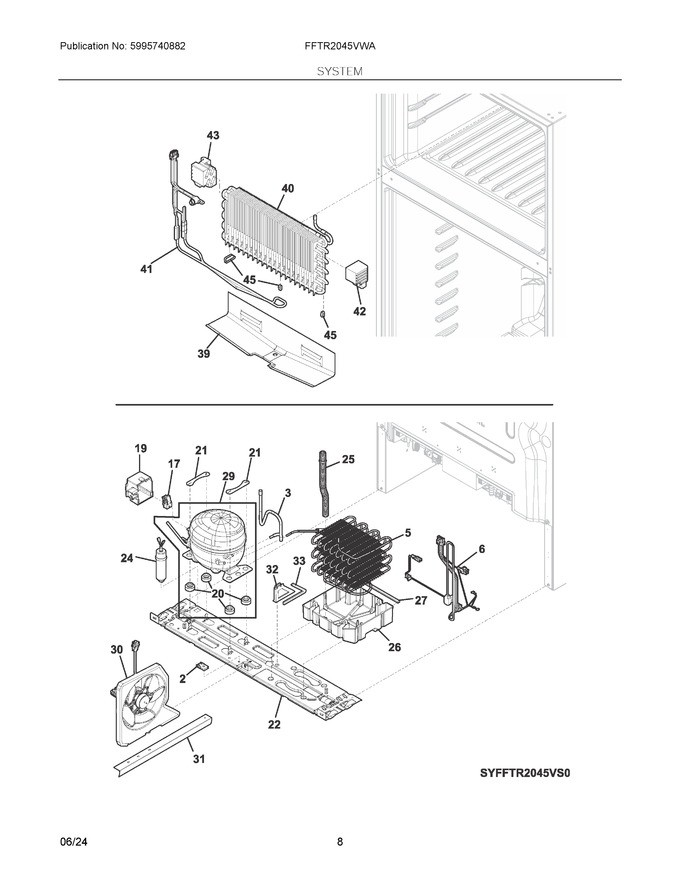

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304456288 | Clamp, Wiring Harness, Galv Steel, Strn Relief |
|
- | |||||
| 3 | 5304537689 | Tube-suction Jumper Es Comp |
|
Immediately | $ 25.38 | ||||
| 4 | A19676501 | Dryer Assembly, Filter (Replaces: 5304522277) |
|
Immediately | $ 99.73 | ||||
| 5 | 5304530007 | Condenser, Dynamic |
|
Immediately | $ 87.62 | ||||
| 6 | 5304519649 | Harness, Wiring, Machine Compt. |
|
Immediately | $ 98.87 | ||||
| 17 | 5304536666 | Starter |
|
Immediately | $ 25.63 | ||||
| 19 | 5304528888 | Cover, Electricals, Compressor |
|
$ 21.59 | |||||
| 21 | 5304524607 | Clamp, Compressor |
|
$ 2.89 | |||||
| 22 | 5304519667 | Base Assembly, Compressor, W/rollers |
|
Immediately | $ 64.46 | ||||
| 24 | 297286812 | Capacitor-run Ngm 12uf |
|
Immediately | $ 11.78 | ||||
| 25 | 5304519743 | Tube, Drain Extension |
|
Immediately | $ 8.34 | ||||
| 26 | 240569202 | Screw, 8-18 X .500 |
|
$ 2.12 | |||||
| 27 | 5304519750 | Seal, Foam, Drain Pan |
|
$ 2.62 | |||||
| 29 | 5304538118 | S/a Pur Comp Esx55cbc Gen2 Mx (Replaces: 5304537774) |
|
Immediately | $ 179.62 | ||||
| 30 | 5304519734 | Fan Assembly, Condenser, W/shroud-foam |
|
Immediately | $ 156.99 | ||||
| 31 | 5304519668 | Baffle, Divider, High Side |
|
- | |||||
| 32 | 5304519745 | Baffle, Drain Pan, Air Block |
|
$ 7.80 | |||||
| 33 | 5304519751 | Seal, Foam, Air Block |
|
$ 3.08 | |||||
| 39 | 5304519679 | Trough, Evap Drain |
|
$ 57.64 | |||||
| 40 | 5304522324 | Evaporator, Assembly |
|
Immediately | $ 150.10 | ||||
| 41 | 5304522340 | Heater, Evap Defrost, W/thermostat |
|
Immediately | $ 88.79 | ||||
| 42 | 5304522326 | Support, Evaporator, Rh |
|
$ 7.59 | |||||
| 43 | 5304522327 | Support, Evaporator, Lh |
|
$ 7.59 | |||||
| 45 | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.03 | |||||
| 61 | 241639502 | Blade, Condenser Fan |
|
Immediately | $ 21.99 | ||||
| 81 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 | ||||
| 26A | 5304519674 | Pan, Drain |
|
$ 39.47 | |||||
| NI | 241947701 | Spacer, Heat Exchanger |
|
$ 100.11 | |||||
| NI | 5304534034 | Screw, Type Ab, #10-16 |
|
- | |||||
| NI | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 |
