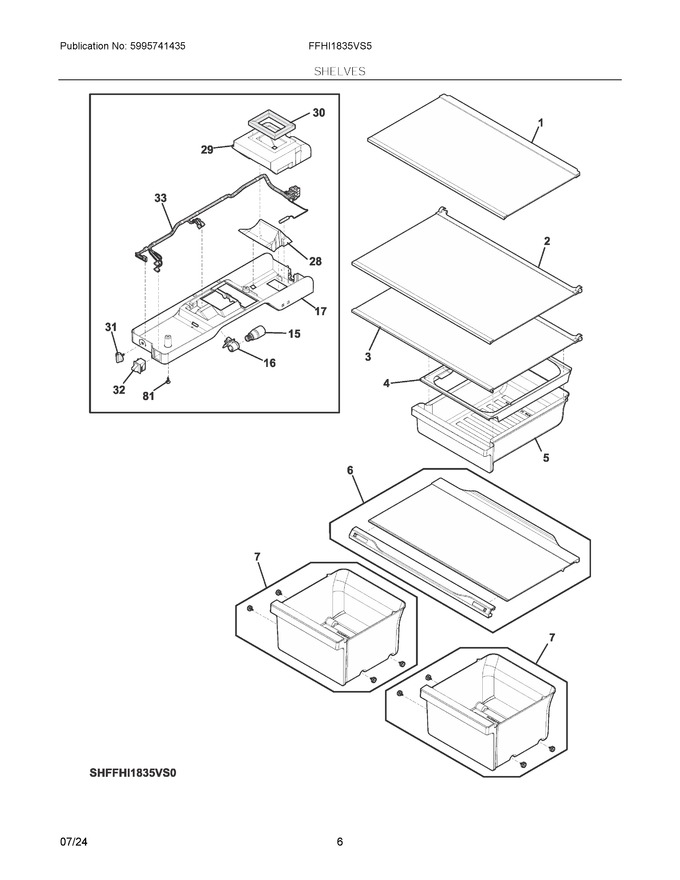

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304535387 | Shelf Assembly, Freezer, Glass, W/trim (Replaces: 5304519660) |
|
Immediately | $ 71.94 | ||||
| 2 | 5304534023 | Shelf Assembly, Refrigerator, Glass, W/trim (Replaces: 5304522151) |
|
Immediately | $ 64.98 | ||||
| 3 | 5304538013 | Assy-drawer/shelf Hw Deli 30w |
|
- | |||||
| 4 | 5304522177 | Carriage, Deli Drawer |
|
Immediately | $ 27.50 | ||||
| 5 | 5304538632 | Drawer, Deli, Half Width (Replaces: 5304522176) |
|
$ 41.82 | |||||
| 6 | 5304534981 | Cover Assembly, Crisper (Replaces: 5304529490) |
|
Immediately | $ 49.27 | ||||
| 7 | 5304534496 | Pan Assembly, Crisper, W/rollers |
|
Immediately | $ 70.30 | ||||
| 15 | 5304522314 | Bulb, Light, E17/12 Led |
|
Immediately | $ 40.19 | ||||
| 16 | 5304522315 | Socket, Led Light |
|
Immediately | $ 10.62 | ||||
| 17 | 5304537127 | Assy-housing Ctrl Box B30cd E* |
|
- | |||||
| 28 | 5304522317 | Diffuser, Control Box, Bottom |
|
$ 16.74 | |||||
| 29 | 5304522318 | Diffuser, Control Box, Top |
|
$ 16.69 | |||||
| 30 | 5304520493 | Seal, Air Duct, Top |
|
Immediately | $ 18.20 | ||||
| 31 | 5304522319 | Knob, Control |
|
Immediately | $ 8.34 | ||||
| 32 | 140118119027 | Switch, Door/light, White (Replaces: 5304520495) |
|
Immediately | $ 4.35 | ||||
| 33 | 5304522320 | Harness, Wiring, Control Box, W/temp Sensor |
|
Immediately | $ 88.52 | ||||
| 81 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 | ||||
| NI | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 17.72 |
