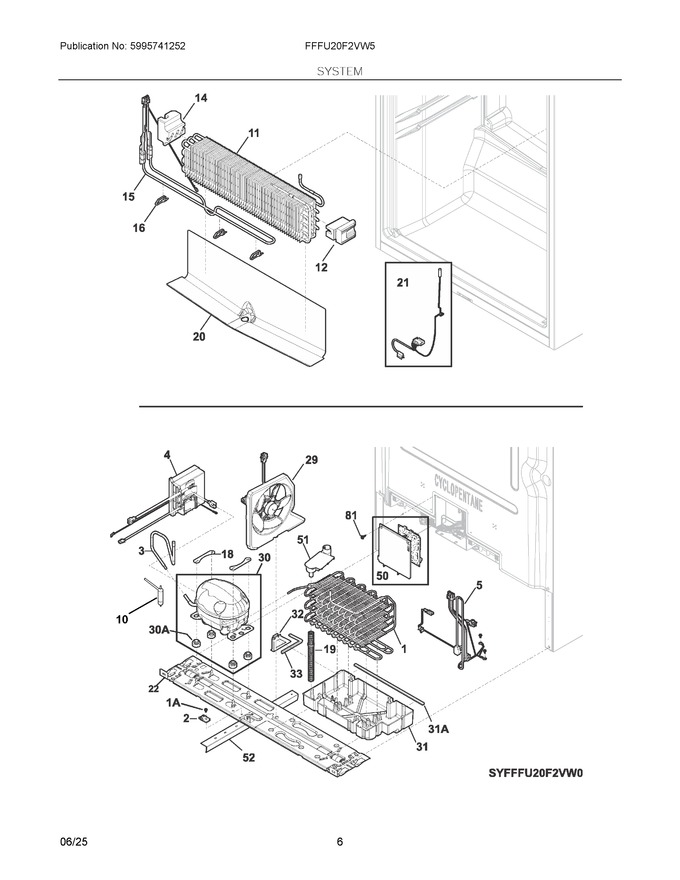

01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304533258 | Condenser, Dynamic (Replaces: 5304523710) |
|
$ 138.22 | |||||
| 2 | 5304454459 | Clamp-cable |
|
- | |||||
| 3 | 5304531532 | Tube, Suction Jumper |
|
$ 21.35 | |||||
| 4 | 5304523779 | Inverter, Flexdrive 2.2 |
|
Immediately | $ 244.00 | ||||
| 5 | 5304532290 | Harness-mach.compt Vsc (Replaces: 5304523761) |
|
Immediately | $ 61.27 | ||||
| 10 | A19676501 | Filter, Drier, Service |
|
Immediately | $ 99.73 | ||||
| 11 | 5304523830 | Evaporator, Coil |
|
Immediately | $ 143.67 | ||||
| 12 | 5304523831 | Support, Evaporator, Rh |
|
$ 3.62 | |||||
| 14 | 5304523832 | Support, Evaporator, Lh |
|
Immediately | $ 3.62 | ||||
| 15 | 5304523833 | Heater, Defrost |
|
Immediately | $ 81.99 | ||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 59.82 | ||||
| 18 | 5304519812 | Clamp, Compressor |
|
- | |||||
| 19 | 5304525042 | Tube, Drain, Extension |
|
Immediately | $ 9.86 | ||||
| 20 | 5304524755 | Trough, Drain (Replaces: 5304523720) |
|
$ 51.34 | |||||
| 21 | 5304523788 | Harness Assembly, Temp/defrost, W/thermostats |
|
Immediately | $ 38.56 | ||||
| 29 | 5304519734 | Fan Assembly, Condenser, W/shroud-foam |
|
Immediately | $ 156.99 | ||||
| 30 | 5304532529 | Compressor, Assembly, Tkd91e, W/grommets (Replaces: 5304523780) |
|
Immediately | $ 477.06 | ||||
| 31 | 5304523709 | Pan, Drain |
|
$ 35.42 | |||||
| 32 | 5304519745 | Baffle, Drain Pan, Air Block |
|
$ 7.80 | |||||
| 33 | 5304519751 | Seal, Foam, Air Block |
|
$ 3.08 | |||||
| 50 | 5304533259 | Board Assembly, Main, W/housing (Replaces: 5304531497) |
|
Immediately | $ 109.20 | ||||
| 51 | 5304530111 | Drain Jumper, Assembly, W/seal |
|
$ 19.52 | |||||
| 52 | 5304523694 | Baffle, Divider |
|
$ 7.96 | |||||
| 81 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 | ||||
| 1A | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 | |||||
| 30A | 5304523829 | Grommet |
|
$ 10.85 | |||||
| 31A | 5304519744 | Tape, Drain Pan, Foam, Front |
|
- | |||||
| NI | 240569202 | Screw, 8-18 X .500 |
|
$ 2.12 | |||||
| NI | 5304523801 | Screw, Hex Wash Hd, M4 X 10 |
|
- | |||||
| NI | 241500305 | Screw, Hex Washer Head, 8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.03 |
