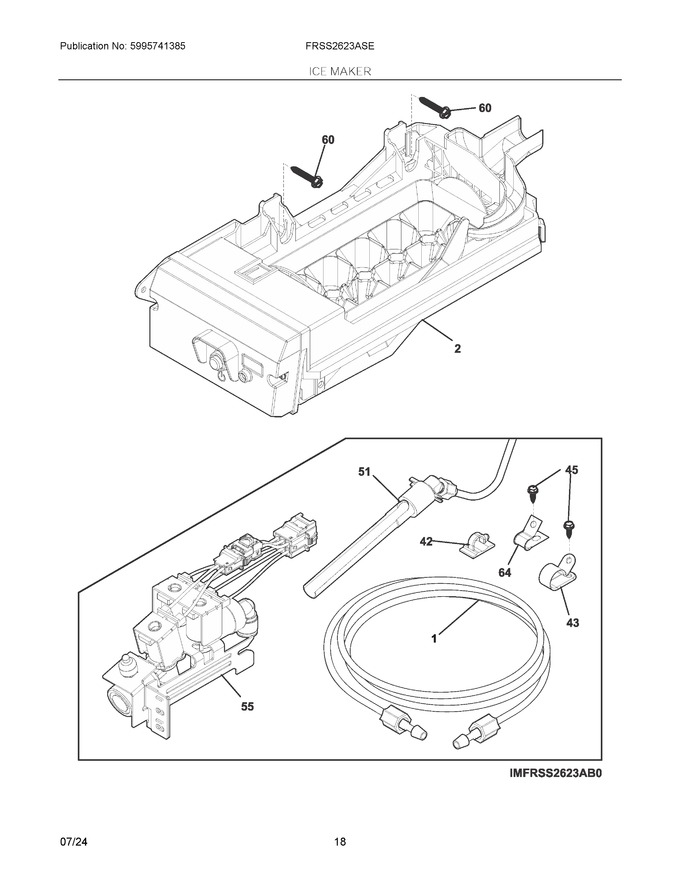

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976447 | Tube, Water, 60", Natural, Door, To Dispenser |
|
$ 16.99 | |||||
| 2 | 140137402065 | Ice Maker, Assembly (Replaces: 5304535023) |
|
$ 127.36 | |||||
| 42 | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 17.72 | |||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| 51 | 241850624 | Tube Assembly, Water Fill Extn, Valve To Im Inl |
|
Immediately | $ 18.25 | ||||
| 55 | 5304538492 | Valve, Water, Triple Solenoid (Replaces: 5304525994) |
|
Immediately | $ 88.59 | ||||
| 60 | 5304455852 | Screw, Hex Washer Head, 8-15a X 1.000, (2) (Replaces: 5303207328) |
|
$ 12.76 | |||||
| 64 | 5304455846 | Clamp, 0.31 Id, Steel, Copper Wtr Line (Replaces: 5303001549) |
|
$ 10.63 | |||||
| NI | 5304525991 | Harness, Wiring, Ice Maker, & Auger Assy |
|
$ 63.45 | |||||
| NI | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIA | 218976439 | Tube, Water, 32", Yellow, Valve, To Door |
|
$ 19.13 | |||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIB | 242220119 | Tube, Water, 97.5", Natural, Filter Base To, Secondary Valve |
|
Immediately | $ 30.47 | ||||
| NIC | 8582422201557 | Tube, Water, 93.5", Brown/tan, Valve To Filter (Replaces: 242220126) |
|
Immediately | $ 11.06 |
