View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front & Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

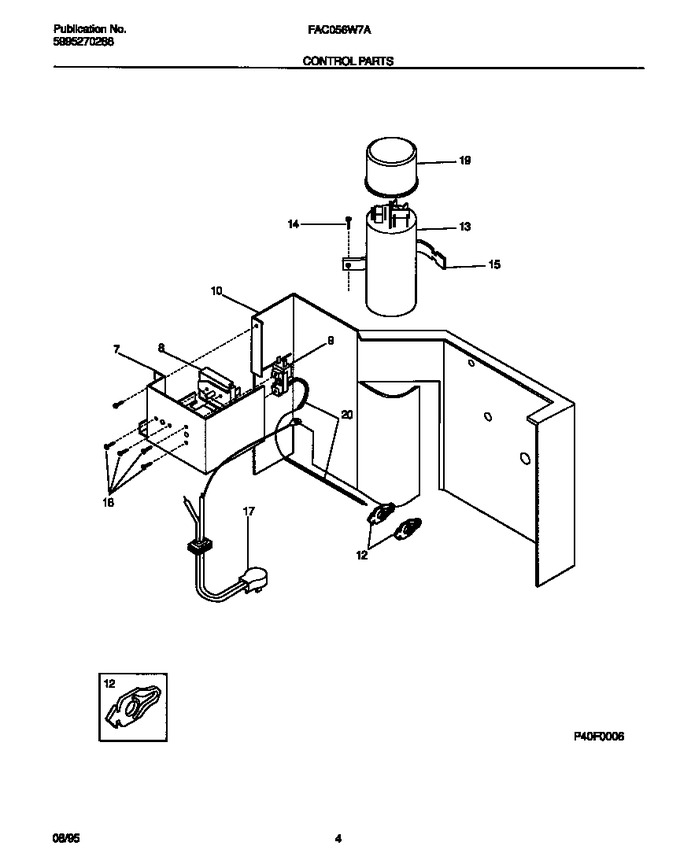

| 7 | 309602502 | Box-control |
|
- | |||||
| 8 | 5308013150 | Switch-selector |
|
- | |||||
| 9 | 5303302852 | Control-temperature |
|
$ 203.91 | |||||
| 10 | 309602401 | Bulkhead |
|
- | |||||
| 12 | 309101202 | Clip-control Bulb, (2) |
|
- | |||||
| 13 | 5303311028 | Capacitor, 370 V, 35 Mfd |
|
- | |||||
| 14 | 5303303691 | Screw, Phillips, 8-18 X .38, Nib Truss Hd. |
|
- | |||||
| 15 | 5303303086 | Strap-capacitor |
|
- | |||||
| 17 | 5303302853 | Cord-electric Power |
|
- | |||||
| 18 | 5303007754 | Screw |
|
- | |||||
| 19 | 5303302855 | Cover-capacitor |
|
- | |||||
| 20 | 5303002600 | Sleeve-control Tube |
|
- |
