Diagram # Part Number Description Series Availability Ships Price Add to Cart
7 309602502 Control Box Appelez-nous -
10 309602401 Bulkhead Appelez-nous -
12 309101202 Clip-control Bulb Appelez-nous -
14 5303303691 Screw, Truss Head, 8-18ab X 0.38, Square Drive Appelez-nous -
15 5303303086 Strap-capacitor Appelez-nous -
18 5303007754 Screw, Pan Head, .138-32 X .188 Appelez-nous -
19 5303302855 Cover-capacitor Appelez-nous -
20 5303002600 Sleeve-control Tube Appelez-nous -
F13 5303302854 Capacitor, 370 V, 5 + 25 Mfd Appelez-nous -
F17 5303317236 Cord-electric Power, 115v Appelez-nous -
F8 5303313962 Switch-selector Special Order $ 188.69

F9 5303302852 Control-temperature Special Order $ 203.91


    View Diagram in Separate Window     Print Icon   Print Part List

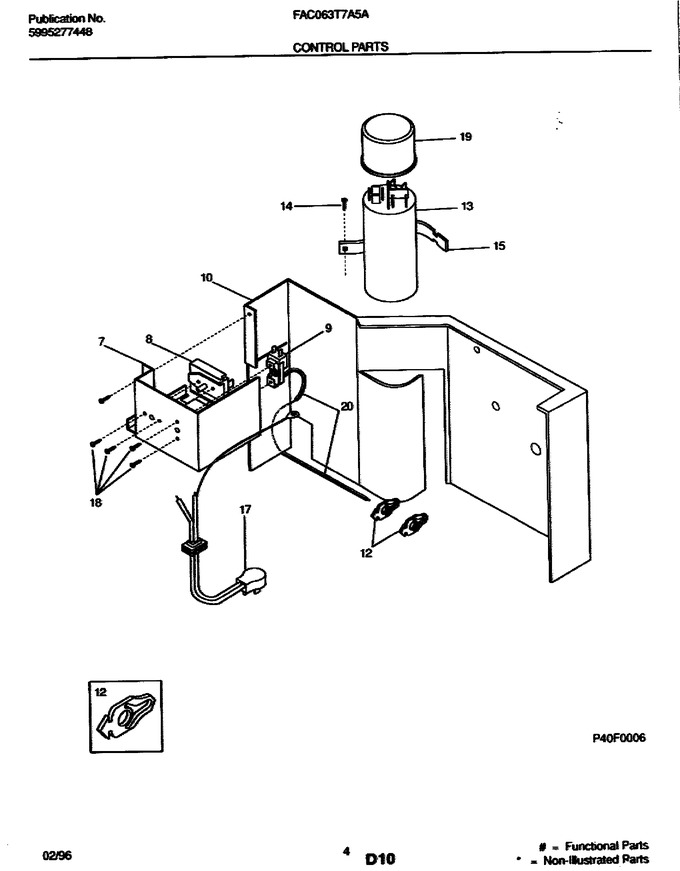

Diagram for FAC063T7A5A
