Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303300107 Compressor Appelez-nous -
2 5303283877 Grommet-compressor, 3 Appelez-nous -
3 5308006948 Nut, Compressor, (3) Appelez-nous -
6 5303291330 Gasket-cover Appelez-nous -
7 5303291329 Cover-terminal Appelez-nous -
8 5303286408 Overload Protector Appelez-nous -
9 5303294292 Nut-cover Appelez-nous -
10 5303317601 Start Assist Kit,compressor Special Order $ 148.05

11 5303302848 Evaporator Appelez-nous -
12 5303302850 Condenser Appelez-nous -
13 5303302849 Tray-evaporator Appelez-nous -
14 5303302847 Base Plate, Compressor Appelez-nous -
16 5308017120 Capillary Tube Appelez-nous -
17 5300265301 Drier-filter Special Order $ 284.30

19 5303002664 Washer - Compressor Appelez-nous -
20 5303291328 Spring-overload Appelez-nous -
21 5303293809 Washer-cover Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

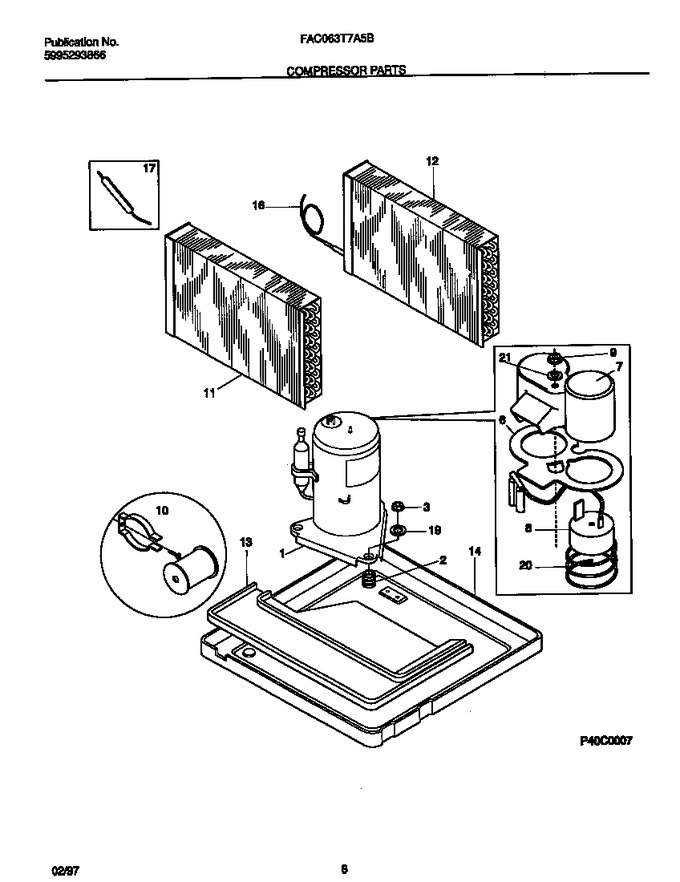

Diagram for FAC063T7A5B
