SELECT A DIAGRAM

01 - Cover


03 - Wrapper


05 - Controls


07 - Air Handling


09 - Compressor


11 - Window Mounting

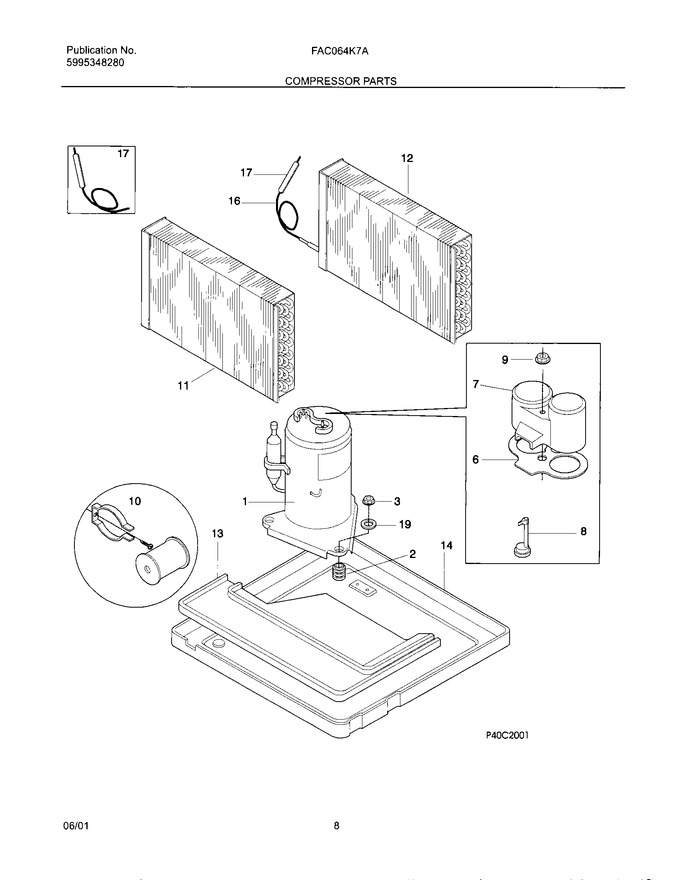

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304420589		Compressor,goldstar		Appelez-nous	-
2	5303283877		Grommet,compressor Mtg ,(3)		Appelez-nous	-
3	5308006948		Nut,compressor Mtg ,(3)		Appelez-nous	-
6	5303291330		Gasket-cover		Appelez-nous	-
7	5304416126		Cover-terminal		Appelez-nous	-
8	5304417320		Overload Protector		Appelez-nous	-
9	5303294292		Nut-cover		Appelez-nous	-
11	309604211		Evaporator		Appelez-nous	-
12	5303303197		Condenser		Appelez-nous	-
13	5303302849		Tray-evaporator		Appelez-nous	-
14	5304413932		Base Plate,compressor Mtg		Appelez-nous	-
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
16	5308017120		Capillary Tube,45 Inch Long ,cut To Length		Appelez-nous	-
17	5304413857		Tube-process		Appelez-nous	-
19	309112501		Washer,metallic		Appelez-nous	-
NI	5303293809		Washer		Appelez-nous	-
NI	5303002664		Washer,compressor Mtg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
