View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front And Wrapper

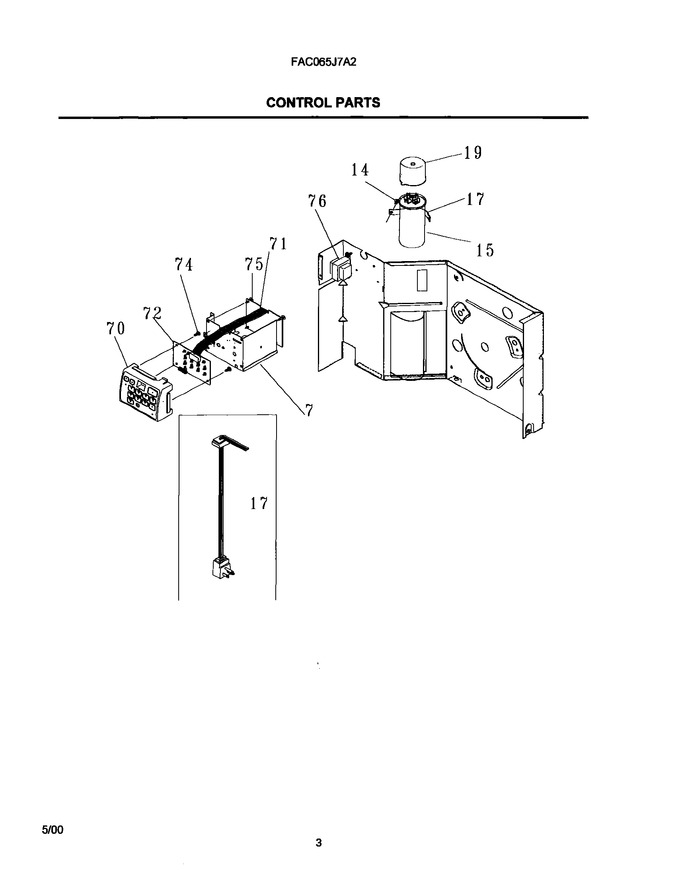

04 - Control Parts
06 - Air Handling Parts
08 - Compressor
09 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309350302 | Control Box |
|
- | |||||
| 10 | 309602403 | Bulkhead |
|
- | |||||
| 12 | 5304413782 | Clip-thermister Holder |
|
- | |||||
| 14 | 5303303691 | Screw, 8-18ab X 0.38 |
|
- | |||||
| 15 | 5303303086 | Strap-capacitor |
|
- | |||||
| 19 | 5303302855 | Cover-capacitor |
|
- | |||||
| 70 | 309342201 | Enclosure |
|
- | |||||
| 71 | 309340503 | Power Board |
|
- | |||||
| 72 | 309340504 | Input Board |
|
- | |||||
| 74 | 3201861 | Screw (Replaces: 5303301590) |
|
$ 0.76 | |||||
| 75 | 5304413781 | Hardware |
|
- | |||||
| F13 | 5303303125 | Capacitor,370 V ,35+5 Microfarad |
|
- | |||||
| F17 | 309343101 | Cord-power 115v |
|
- | |||||
| F76 | 309111601 | Transformer |
|
- |
