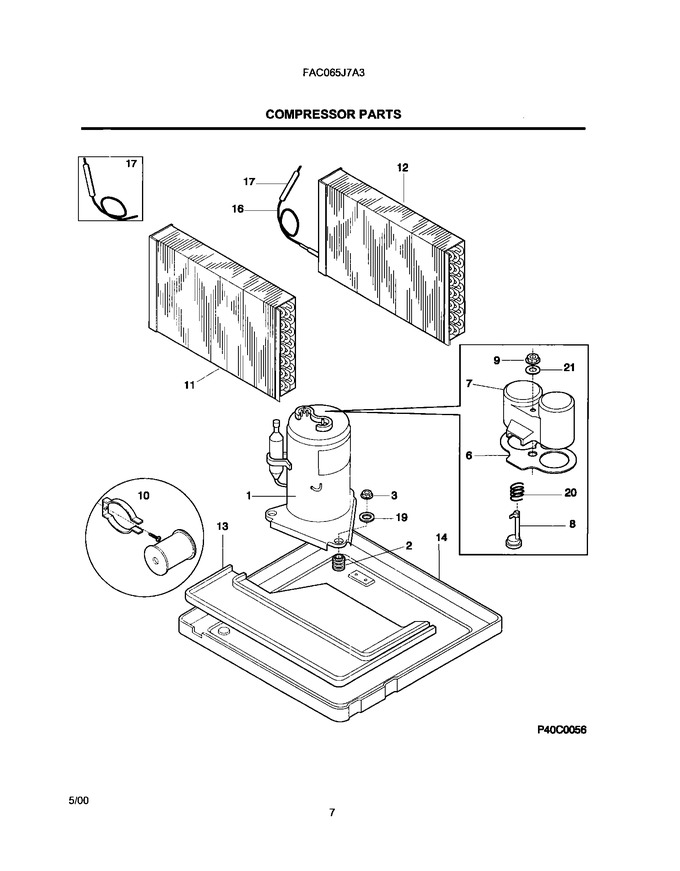

01 - Cover
03 - Cabinet Front And Wrapper
05 - Control Parts
07 - Air Handling Parts
09 - Compressor Parts
11 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 5303002035 | Gasket,terminal Cover |
|
- | |||||
| 7 | 3002034 | Cover,compr Terminal |
|
- | |||||
| 9 | 5303301734 | Nut,terminal Cover |
|
- | |||||
| 13 | 5303302849 | Tray-evaporator |
|
- | |||||
| 14 | 5304413780 | Base-compressor |
|
- | |||||
| 16 | 5308017120 | Capillary Tube |
|
- | |||||
| 19 | 5303002664 | Washer,compressor Mtg |
|
- | |||||
| 20 | 5303002036 | Spring-overload |
|
- | |||||
| 21 | 5303295516 | Washer,terminal Cover |
|
- | |||||
| F1 | 5303925116 | Compressor, W/overload |
|
- | |||||
| F11 | 5304403290 | Evaporator |
|
- | |||||
| F12 | 5303302850 | Condenser |
|
- | |||||
| F8 | 5303211022 | Overload Protector |
|
- |
