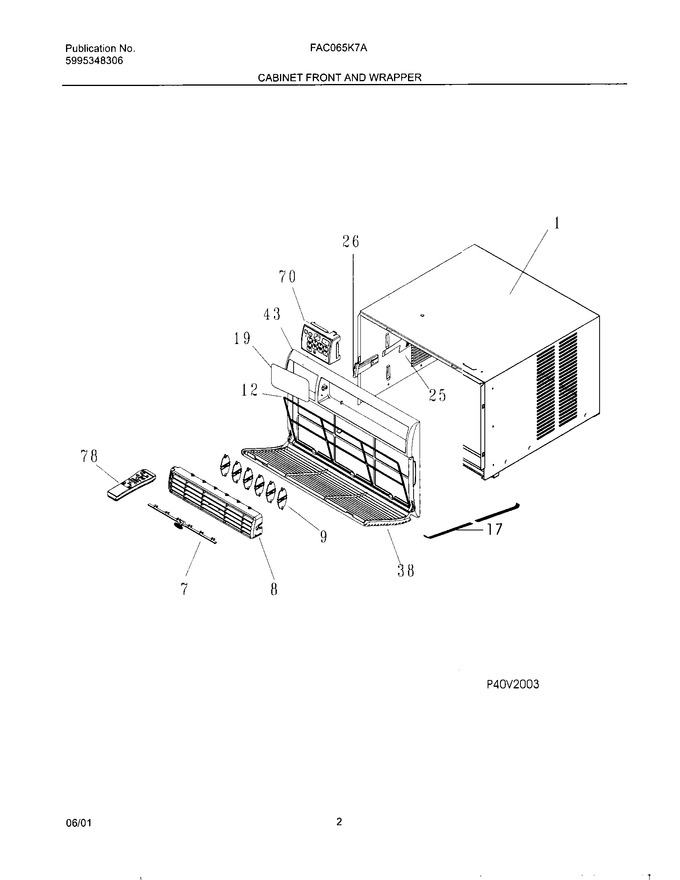

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304413783		Cabinet		Appelez-nous	-
7	309638001		Link,vertical Louver ,with Handle		Appelez-nous	-
8	309640202		Louver Assy,horizontal ,incl-7,8,9		Appelez-nous	-
9	309342001		Louver,vertical ,(6)		Appelez-nous	-
12	309343501		Filter-air,7.12 X 17.31 ,no Frame				$ 49.82
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
17	309640102		Front-cabinet,4 Way ,complete Assy		Appelez-nous	-
18	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
19	309340802		Overlay-compact		Appelez-nous	-
25	309328601		Door-vent,fresh Air		Appelez-nous	-
26	309330201		Detent-vent				$ 26.30
26	309638201		Handle Vent Door		Appelez-nous	-
38	309639201		Panel,cabinet Front		Appelez-nous	-
43	309639101		Frame,cabinet Front		Appelez-nous	-
70	309342201		Enclosure,elec Control Mt		Appelez-nous	-
78	309350502		Remote Control,transmitter ,with Batteries				$ 108.26
NI	309639301		Louver,horizontal		Appelez-nous	-
