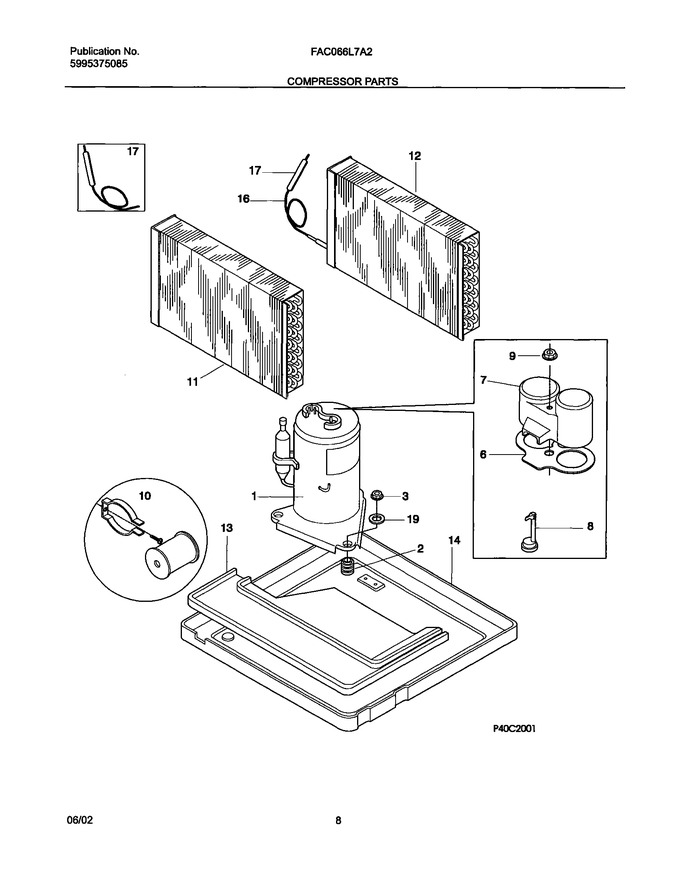

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 3201668 | Gasket - Terminal Cover |
|
- | |||||
| 7 | 5304405245 | Cover,compr Terminal |
|
- | |||||
| 9 | 3201670 | Nut,terminal Cover |
|
- | |||||
| 14 | 309644003 | Base,compressor Mt. ,with Studs |
|
- | |||||
| 19 | 309112501 | Washer,metallic |
|
- | |||||
| F1 | 309616916 | Compressor |
|
- | |||||
| F10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| F11 | 309604211 | Evaporator |
|
- | |||||
| F12 | 309645305 | Condenser |
|
- | |||||
| F13 | 309642802 | Tray,evap Drip (Replaces: 309642801) |
|
- | |||||
| F16 | 5304417693 | Capillary Tube,37 Inch Long ,cut To Length |
|
- | |||||
| F17 | 5300265301 | Drier-filter,service Kit |
|
$ 284.30 | |||||
| F8 | 5303311029 | Overload Protector |
|
- |
