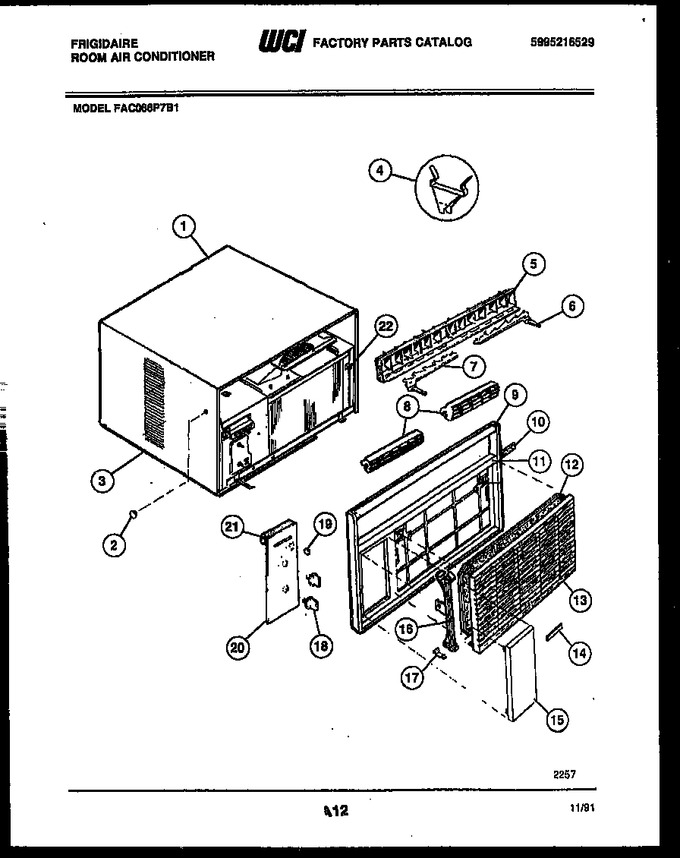

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270060 | Wrapper |
|
- | |||||
| 2 | 08016091 | Plug Btn |
|
- | |||||
| 3 | 3015312 | Screw |
|
- | |||||
| 4 | 5303001844 | Clip |
|
- | |||||
| 5 | 5303002457 | Louver-w/ Link |
|
- | |||||
| 6 | 5303002160 | Link-rh |
|
- | |||||
| 7 | 08017146 | Link-lh |
|
- | |||||
| 8 | 08017364 | Louver |
|
- | |||||
| 9 | 08017187 | Front-complete |
|
- | |||||
| 10 | 08007482 | Seal-mullion |
|
- | |||||
| 11 | 08017180 | Insert-mullion |
|
- | |||||
| 12 | 5308017189 | Filter |
|
- | |||||
| 13 | 08017178 | Panel-front |
|
- | |||||
| 14 | 08017126 | Name Plate |
|
- | |||||
| 15 | 08016194 | Door |
|
- | |||||
| 16 | 5308017137 | Track-filter |
|
- | |||||
| 17 | 5303001784 | Clip-front To Base |
|
- | |||||
| 18 | 5308016109 | Knob-control |
|
- | |||||
| 19 | 5303002189 | Knob-slide |
|
- | |||||
| 20 | 5303282851 | Dial Plate |
|
- | |||||
| 21 | 5303001861 | Seal (2) |
|
- | |||||
| 22 | 5308017124 | Bracket-frame |
|
- |
