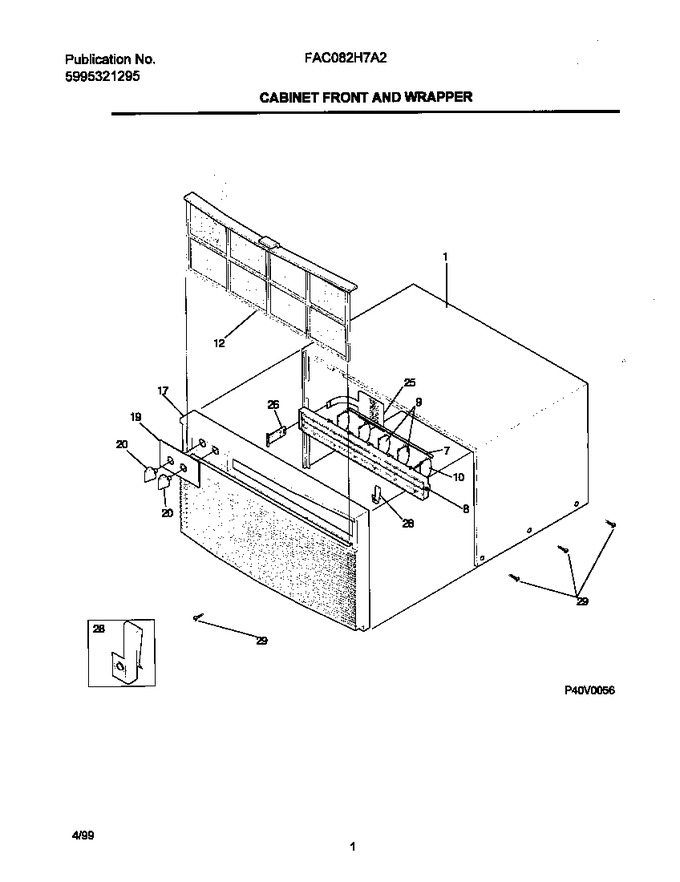

02 - Cabinet Front/wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304403285 | Cabinet |
|
- | |||||
| 7 | 5303303089 | Link-louver |
|
- | |||||
| 8 | 309603901 | Louver, W/items 7, 9, 10 |
|
- | |||||
| 9 | 5303303087 | Louver-vertical, (4) |
|
- | |||||
| 10 | 5303303088 | Louver-vertical W/handle |
|
- | |||||
| 12 | 5303303242 | Filter |
|
- | |||||
| 17 | 309603407 | Front,cabinet ,complete |
|
- | |||||
| 19 | 309613537 | Plate-dial Fac Compact |
|
- | |||||
| 20 | 309306807 | Knob-rotary (2005;w/7005) |
|
- | |||||
| 25 | 309328601 | Door-vent,fresh Air |
|
- | |||||
| 26 | 309330201 | Detent-vent |
|
$ 26.30 | |||||
| 26 | 309328702 | Handle-vent Door 2005 (beige) |
|
- | |||||
| 28 | 309100401 | Clip,cabinet Front |
|
- | |||||
| 29 | 5303303691 | Screw, 8-18ab X 0.38 |
|
- |
