01 - Cover

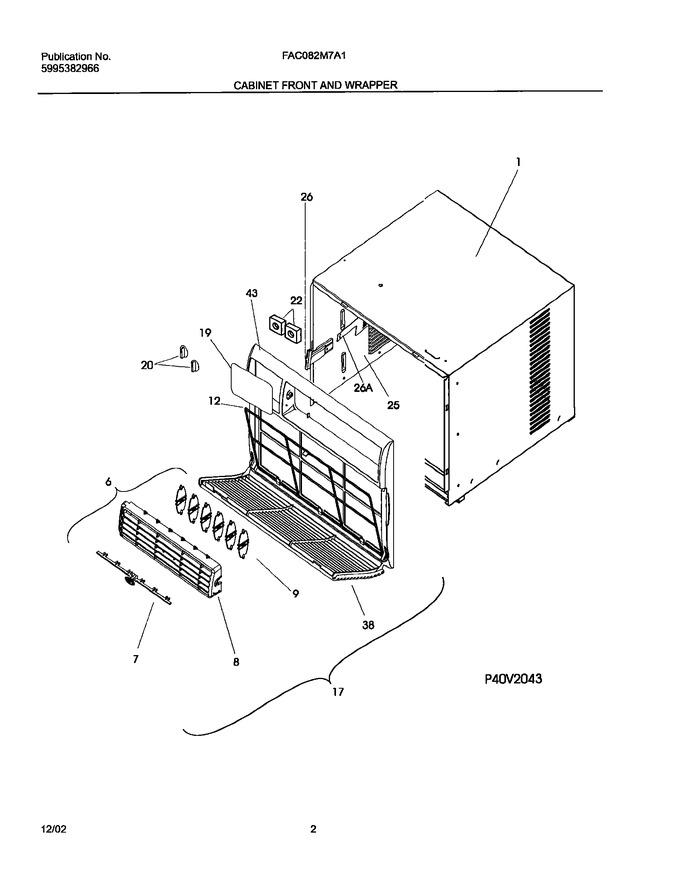

03 - Cabinet Front And Wrapper


05 - Controls


07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309643602		Cabinet,wrapper		Appelez-nous	-
6	309640206		Louver Assy,includes 7,8,9		Appelez-nous	-
7	309638002		Link,vertical Louver ,with Handle		Appelez-nous	-
8	309639302		Louver,horizontal		Appelez-nous	-
9	309342001		Louver,vertical ,(6)		Appelez-nous	-
12	309343501		Filter-air,7.12 X 17.31 ,no Frame				$ 49.82
17	309640104		Front Assembly,cabinet ,w/8,9,12,38,43				$ 331.59
19	309342909		Dial Plate		Appelez-nous	-
20	309364102		Knob,rotary Control				$ 28.51
22	5303001775		Spacer - Dial Plate		Appelez-nous	-
25	309328603		Door,fresh Air Vent		Appelez-nous	-
26	309638201		Handle Vent Door		Appelez-nous	-
38	309646301		Panel,cabinet Front				$ 50.77
43	309646401		Frame,cabinet Front				$ 77.70
26A	309330201		Detent-vent				$ 26.30
NI	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
NI	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
NI	309369924		Energy Guide,fac082m7a1		Appelez-nous	-
