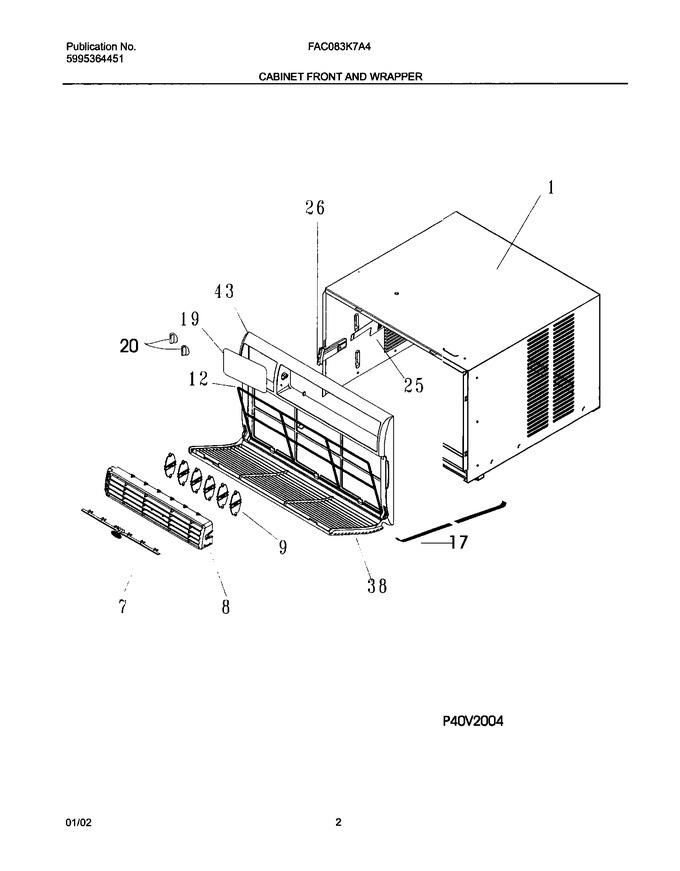

03 - Cabinet Front And Wrapper


05 - Controls


07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309643602		Cabinet		Appelez-nous	-
7	309638001		Link,vertical Louver ,with Handle		Appelez-nous	-
8	309640202		Louver Assy,horizontal ,incl-7,8,9		Appelez-nous	-
8	309639301		Louver,horizontal		Appelez-nous	-
9	309342001		Louver,vertical ,(6)		Appelez-nous	-
12	309343501		Filter-air,7.12 X 17.31 ,no Frame				$ 49.82
17	309640104		Front-cabinet,4 Way ,complete Assy				$ 331.59
19	309342903		Dial Plate		Appelez-nous	-
20	309306811		Knob-control,rotary				$ 45.73
25	309328603		Door-vent,fresh Air		Appelez-nous	-
26	309638201		Handle Vent Door		Appelez-nous	-
38	309646301		Panel,cabinet Front				$ 50.77
43	309646401		Frame,cabinet Front				$ 77.70
NI	5303303691		Screw,truss Head ,8-18ab X 0.375 ,cabinet/base,w/nibs		Appelez-nous	-
NI	5303001775		Spacer - Dial Plate		Appelez-nous	-
NI	309330201		Detent-vent				$ 26.30
