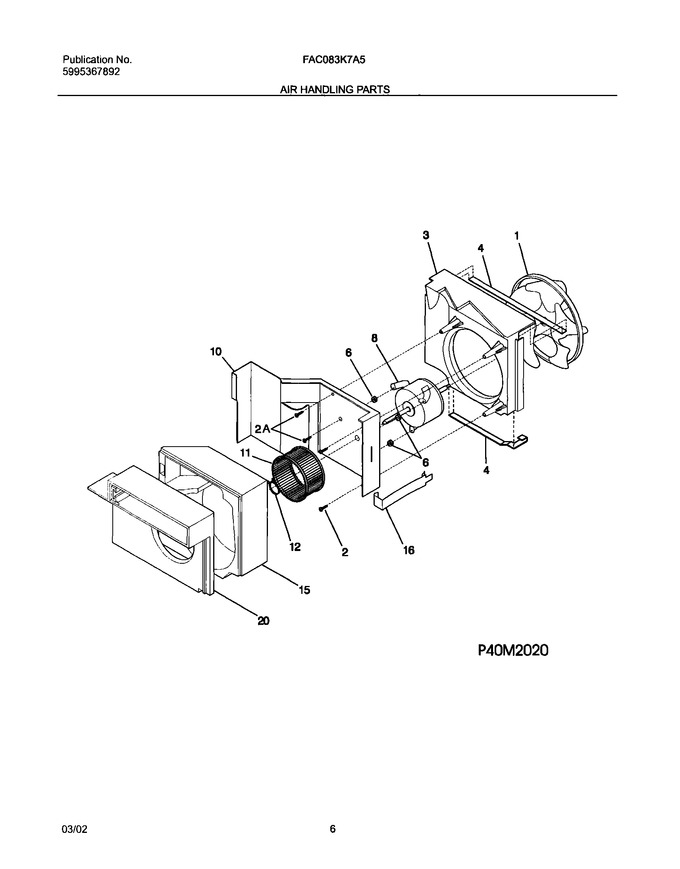

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3202975		Screw,10-16ab X 0.72 ,square Drive		Appelez-nous	-
3	309643901		Housing-fan,shroud		Appelez-nous	-
4	5304421913		Seal,top		Appelez-nous	-
4	5303303759		Seal,bottom		Appelez-nous	-
6	5300105402		Grommet-motor, (3)		Appelez-nous	-
10	309643701		Bulkhead		Appelez-nous	-
12	309112101		Clamp,blower Wheel Mt ,compression		Appelez-nous	-
15	309642901		Housing,blower Scroll ,extended		Appelez-nous	-
16	309100201		Clip,evap/bulkhead		Appelez-nous	-
20	309643002		Plate,housing/scroll		Appelez-nous	-
2A	5303317224		Screw,indt Hex Head ,10-16 ,(3)		Appelez-nous	-
F1	309624502		Fan Blade,with Clamp				$ 85.31
F11	309643301		Blower Wheel				$ 52.03
F8	309642404		Motor,fan		Appelez-nous	-
