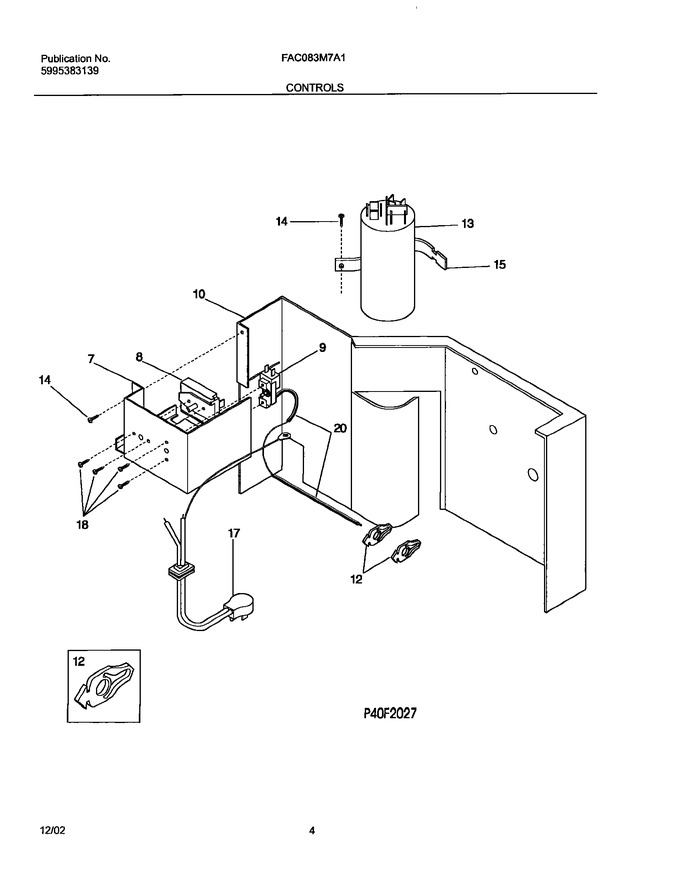

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309643802		Control Box		Appelez-nous	-
10	309643702		Bulkhead		Appelez-nous	-
12	309101202		Clip,retainer ,temp Sensor ,(2)		Appelez-nous	-
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
15	309351901		Strap,capacitor Mtg.		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
20	5304417582		Sleeve,temp Sensor ,6 In.		Appelez-nous	-
F13	5304426336		Capacitor,250 V ,35+10 Mfd		Appelez-nous	-
F17	309343122		Cord-electric Power,18 Awg ,115 V		Appelez-nous	-
F8	5303323284		Switch,selector ,7 Posn,3 Speed		Appelez-nous	-
F9	5304402838		Control-temperature		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-
NI	5303285199		Screw,ph Truss Hd ,8-18 X 0.38 ,grounding		Appelez-nous	-
