01 - Cover

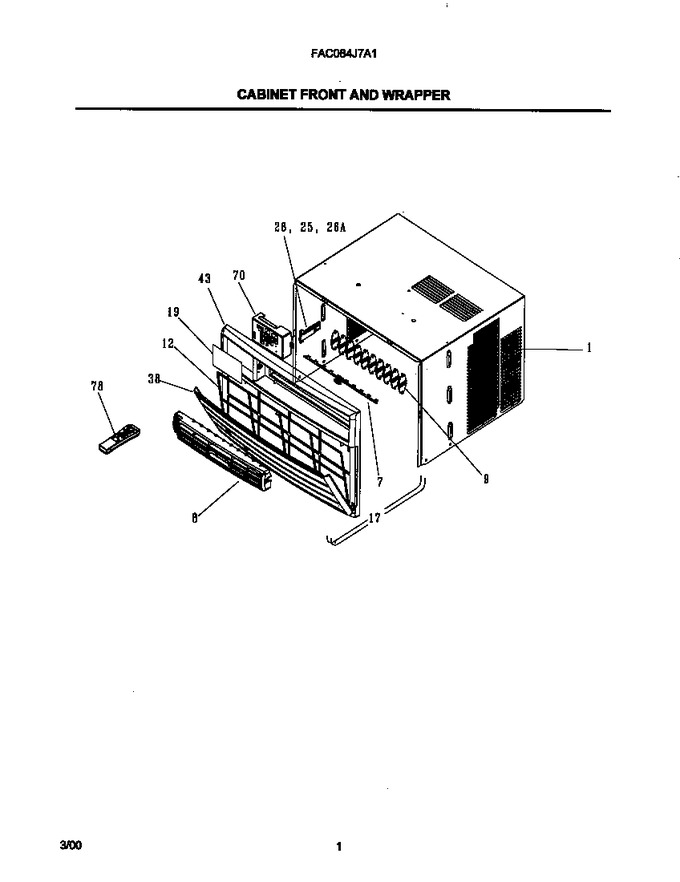

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304413783 | Wrapper-u-bend Ncs1403 A-kit |
|
- | |||||
| 7 | 309638001 | Link-vert. Louver Compact |
|
- | |||||
| 8 | 309639301 | Louver-horiz Brands Ncs1403 |
|
- | |||||
| 9 | 309342001 | Vert. Louv. |
|
- | |||||
| 12 | 309343501 | Filter-no Frame |
|
$ 49.82 | |||||
| 17 | 309640102 | Frnt Pnl Assy-brands 4way |
|
- | |||||
| 19 | 309340803 | Overlay-compact Fac N/gallery |
|
- | |||||
| 25 | 309328601 | Door-vent,fresh Air |
|
- | |||||
| 26 | 309639401 | Handle-vnt Brnd 1403 Cmp/22tc |
|
- | |||||
| 38 | 309639201 | Panel-front |
|
- | |||||
| 43 | 309639101 | Frame-frnt |
|
- | |||||
| 70 | 309342201 | Encloure-comp/brands |
|
- | |||||
| 78 | 309342604 | Remote-cntrl Pkg Ge;fac N/gry |
|
- | |||||
| *82640 | 309330201 | Detent-vent |
|
$ 26.30 | |||||
| *82641 | 309640202 | Louver-horiz Assy Brands |
|
- |
