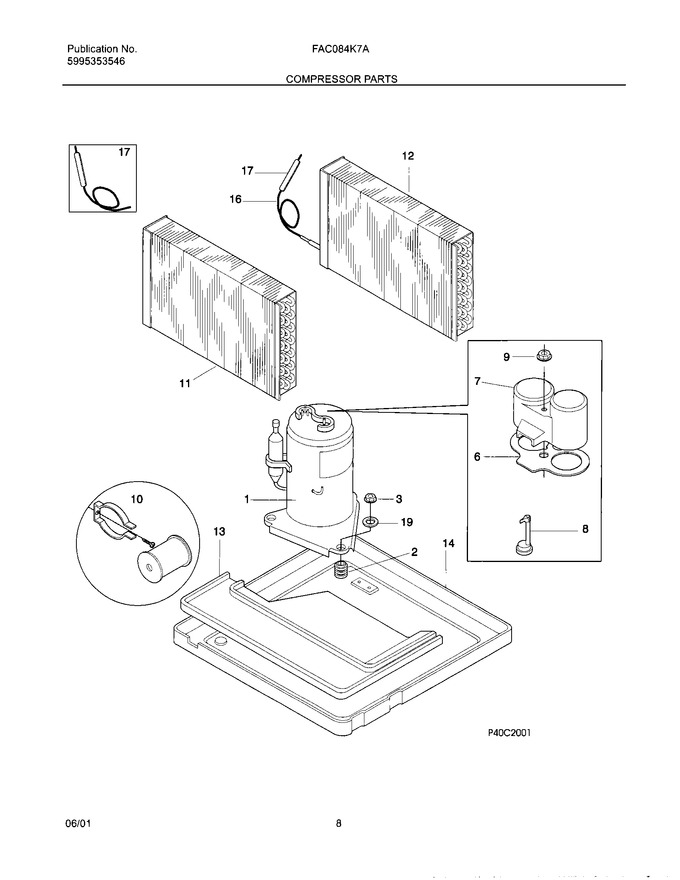

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304420272		Compressor		Appelez-nous	-
2	5303283877		Grommet,compressor Mtg ,(3)		Appelez-nous	-
3	5308006948		Nut,compressor Mtg ,(3)		Appelez-nous	-
6	5303291330		Gasket,terminal Cover		Appelez-nous	-
7	5304416126		Cover-terminal,compressor		Appelez-nous	-
8	5304420271		Overload Protector		Appelez-nous	-
9	5303294292		Nut-terminal Cover		Appelez-nous	-
10	5303317601		Start Assist Kit,compressor				$ 148.05
11	309619303		Evaporator		Appelez-nous	-
12	5303303195		Condenser		Appelez-nous	-
13	5303302849		Tray-evaporator		Appelez-nous	-
14	5304413780		Base-compressor		Appelez-nous	-
16	5304409280		Capillary Tube,37 Inch Long		Appelez-nous	-
17	5304417516		Tube-process		Appelez-nous	-
19	5303002664		Washer,compressor Mtg		Appelez-nous	-
NI	309112501		Washer,metallic		Appelez-nous	-
