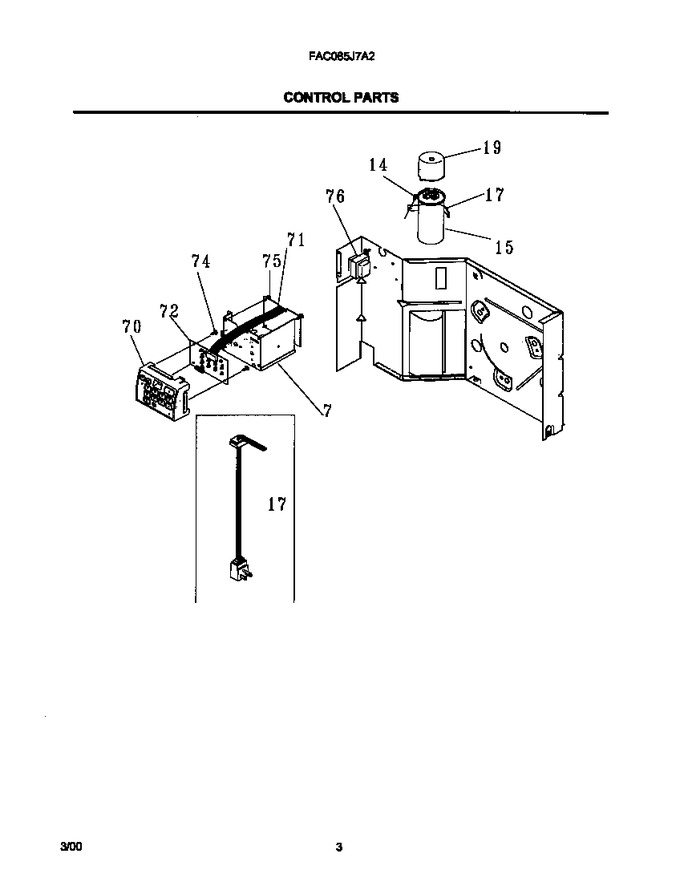

03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309340402 | Control Box-elect Comp |
|
- | |||||
| 10 | 309602403 | Bulkhead |
|
- | |||||
| 12 | 5304414108 | Thermistor Holder |
|
- | |||||
| 13 | 5303303576 | Capacitor, 370 V, 10+35 Mfd |
|
- | |||||
| 14 | 3015312 | Screw,8-18ab X 0.500 |
|
- | |||||
| 15 | 5303303086 | Strap-capacitor |
|
- | |||||
| 17 | 309343101 | Cord-srv 115v/18ga Lt. Grey |
|
- | |||||
| 19 | 5303302855 | Cover-capacitor |
|
- | |||||
| 71 | 309340503 | Power Board |
|
- | |||||
| 72 | 309340504 | Input-board Compact Fac |
|
- | |||||
| 74 | 3201861 | Screw-bracket (Replaces: 5303301590) |
|
$ 0.76 | |||||
| 75 | 5304413781 | Pc Board-support Hardware |
|
- | |||||
| 76 | 309111601 | Transformer 115/12volts |
|
- | |||||
| *71602 | 309111201 | Grommet,wire Protector |
|
- | |||||
| *71603 | 5304413782 | Thermistor Holder Assy |
|
- | |||||
| *71604 | 309341601 | Diagram-wiring Eng/frnch |
|
- |
