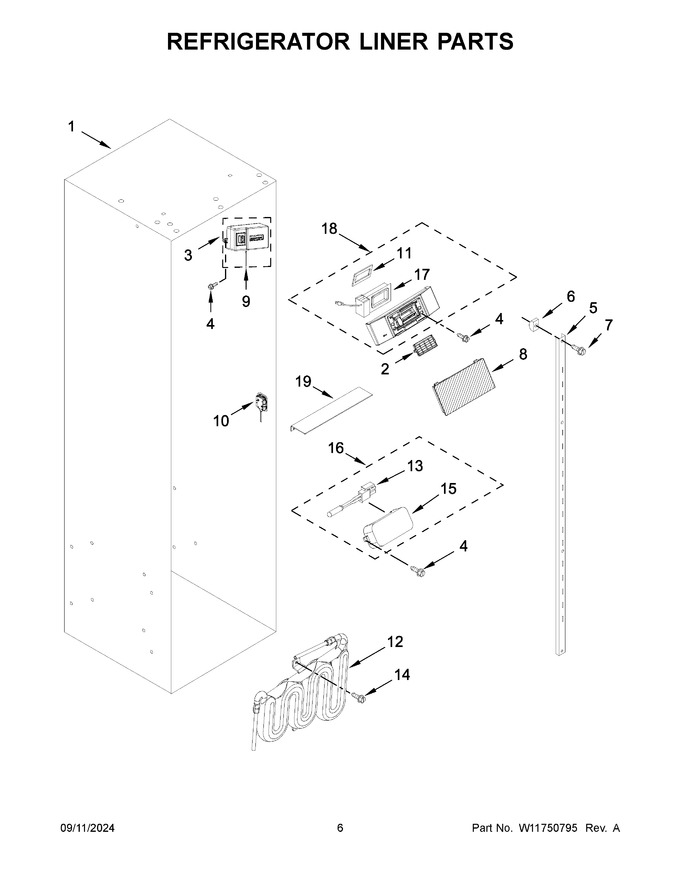

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI8B23AD81B97D70C7853D17BAA6EEAA2D | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 12.91 | ||||
| 3 | W11744513 | Assembly, Air Diffuser Cover (includes Thermistor) (Replaces: W11447197) |
|
$ 117.52 | |||||
| 4 | W10678210 | Screw (black) |
|
$ 17.82 | |||||
| 5 | W11481489 | Ladder, Shelf |
|
- | |||||
| 6 | 520965 | Support, Ladder |
|
$ 28.22 | |||||
| 7 | W10678207 | Screw (Replaces: W10832438) |
|
$ 14.79 | |||||
| 8 | W11480887 | Cover, Diffuser Assembly |
|
- | |||||
| 9 | WP2302937 | Thermistor (Replaces: 2302937) |
|
$ 79.57 | |||||
| 10 | W11484836 | Assembly, Led Module (Replaces: W11229041) |
|
Immediately | $ 25.52 | ||||
| 11 | W11480891 | Gasket, Air Baffle |
|
$ 27.10 | |||||
| 12 | W11825825 | Reservoir, Water (Replaces: W11463083) |
|
$ 125.23 | |||||
| 13 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 27.77 | ||||
| 14 | W10141518 | Screw |
|
$ 8.59 | |||||
| 15 | W11235125 | Cover, Thermistor (Replaces: W10912104) |
|
$ 97.29 | |||||
| 16 | W11759117 | Assembly, Thermistor (Replaces: W11550867) |
|
Immediately | $ 40.55 | ||||
| 17 | WP2220377 | Baffle, Air (Replaces: 2220377) |
|
Immediately | $ 342.95 | ||||
| 18 | W11741459 | Assembly, Diffuser (Replaces: W11449567) |
|
$ 373.69 | |||||
| 19 | W10782834 | Diverter, Crisper Cover |
|
Immediately | $ 58.66 |
