SELECT A DIAGRAM

01 - Cover


03 - Cabinet Front And Wrapper

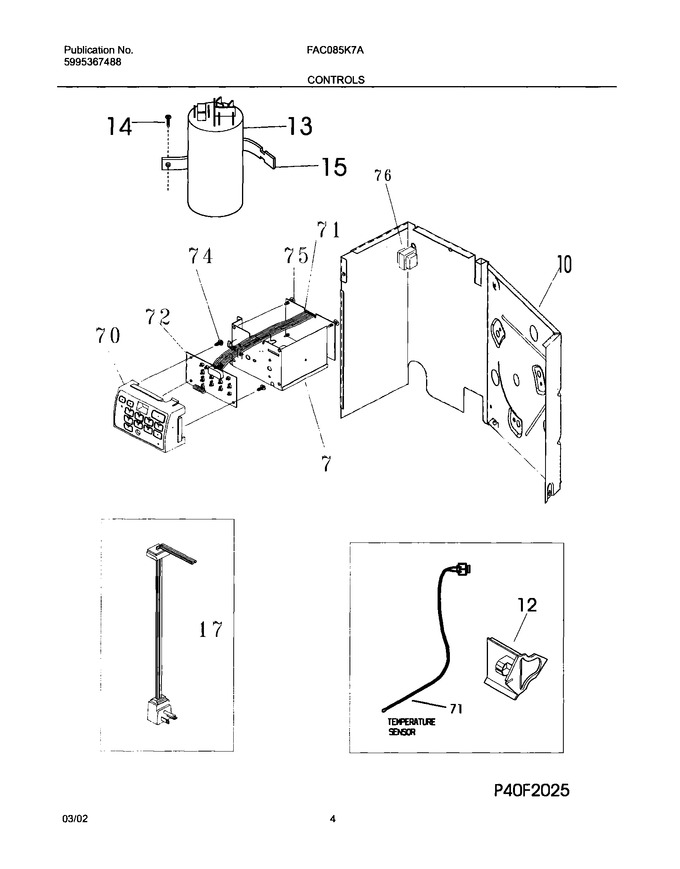

05 - Controls


07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	309643701		Bulkhead		Appelez-nous	-
12	5304413782		Holder,thermistor ,w/seal		Appelez-nous	-
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
15	309351901		Strap,capacitor Mtg.		Appelez-nous	-
70	309342201		Enclosure,elec Control Mt		Appelez-nous	-
71	309350401		Pc Board,power ,w/temp Sensor		Appelez-nous	-
72	309350402		Pc Board,input		Appelez-nous	-
74	3201861		Screw,6-20ab X 0.38   (Replaces: 5303301590)				$ 0.76
75	5304413781		Support-pc Board		Appelez-nous	-
76	309111601		Transformer,120/12 Volt		Appelez-nous	-
F13	5304426450		Capacitor,250 V ,40+10 Mfd		Appelez-nous	-
F17	309343101		Cord-electric Power,18 Awg ,115 V		Appelez-nous	-
F7	309643801		Control Box		Appelez-nous	-
NI	5304417643		Ribbon Protector		Appelez-nous	-
NI	5303285199		Screw,ph Truss Hd ,8-18 X 0.38 ,ground		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
