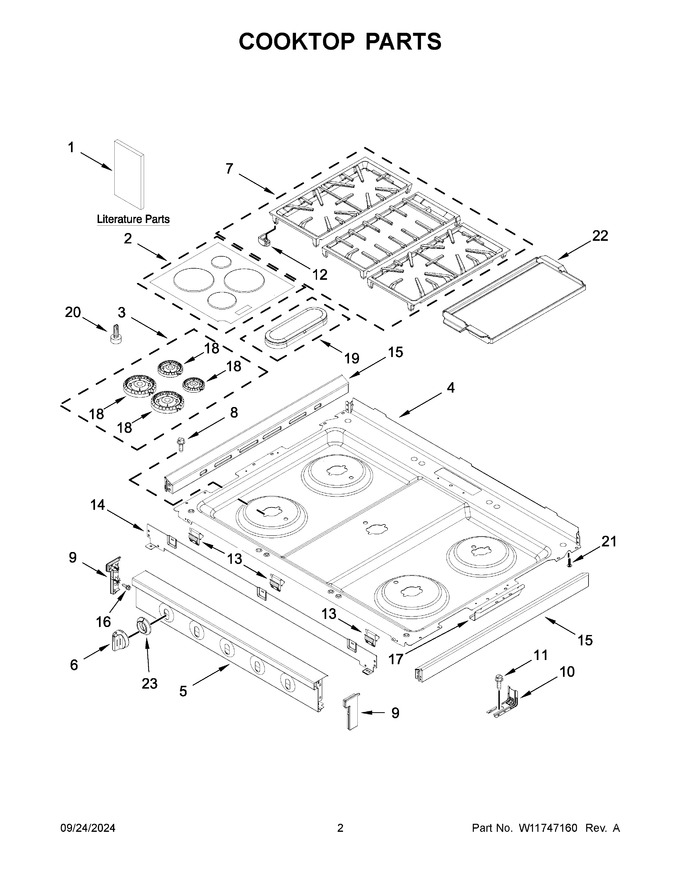

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11642081 | Owner's Manual |
|
- | |||||
| 2 | W11730327 | Burner Cap Kit (black (set Of 4)) (Replaces: W11635764) |
|
- | |||||
| 3 | W11728823 | Burner Kit (Replaces: W11635708) |
|
$ 180.92 | |||||
| 4 | W11730423 | Cooktop (black) (Replaces: W11279786) |
|
$ 332.69 | |||||
| 5 | W11730044 | Panel, Manifold (black) (Replaces: W11412239) |
|
Immediately | $ 412.80 | ||||
| 6 | W11730467 | Knob, Control (stainless) (Replaces: W11372959) |
|
- | |||||
| 7 | W11730326 | Grate Kit (black (set Of 3)) (Replaces: W11370698) |
|
- | |||||
| 8 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 9 | W11729964 | Panel, Manifold End Cap (stainless (left)) (Replaces: W11351704) |
|
Immediately | $ 84.98 | ||||
| 10 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 11 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 12 | W11729100 | Grate, Bumper (Replaces: W11672010) |
|
$ 13.71 | |||||
| 13 | W11728827 | Spring, Clip (Replaces: W11637551) |
|
- | |||||
| 14 | W11750421 | Cooktop, Front Bracket (Replaces: W11295628) |
|
- | |||||
| 15 | W11729931 | Frame, Cooktop (black) (Replaces: W11367962) |
|
$ 171.56 | |||||
| 16 | W11245710 | Screw (Replaces: 9780274) |
|
$ 14.75 | |||||
| 17 | W11728390 | Bracket, Spark Module (Replaces: W11366598) |
|
- | |||||
| 18 | W11747336 | Spreader, Flame (left Front And Right Rear) (Replaces: W11352019) |
|
$ 41.07 | |||||
| 19 | W11475513 | Oval Burner Assembly (center) (Replaces: W11357363) |
|
$ 109.81 | |||||
| 20 | 8016P02260 | Glide, Main Top |
|
- | |||||
| 21 | W10530626 | Screw |
|
$ 16.76 | |||||
| 22 | W11730472 | Accessory Parts, Griddle (Replaces: W11601635) |
|
$ 224.30 | |||||
| 23 | W11730329 | Bezel (Replaces: W11374916) |
|
Immediately | $ 62.32 | ||||
| 18A | W11435657 | Spreader, Flame (left Rear) (Replaces: W11352021) |
|
$ 84.43 | |||||
| 18B | W11435630 | Spreader, Flame (right Front) (Replaces: W11352018) |
|
Immediately | $ 82.12 | ||||
| 1A | W11639173 | Tech Sheet |
|
- | |||||
| 1B | W11641830 | Quick Start Guide |
|
- | |||||
| 9A | W11729965 | Panel, Manifold End Cap (stainless (right)) (Replaces: W11351707) |
|
Immediately | $ 84.98 | ||||
| NI | W11730263 | Harness, Main (Replaces: W11334462) |
|
- | |||||
| NI | W11730264 | Harness, Cooktop (Replaces: W11334489) |
|
$ 180.62 | |||||
| NI | W11730272 | Harness, Bake (Replaces: W11454086) |
|
Immediately | $ 59.10 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
