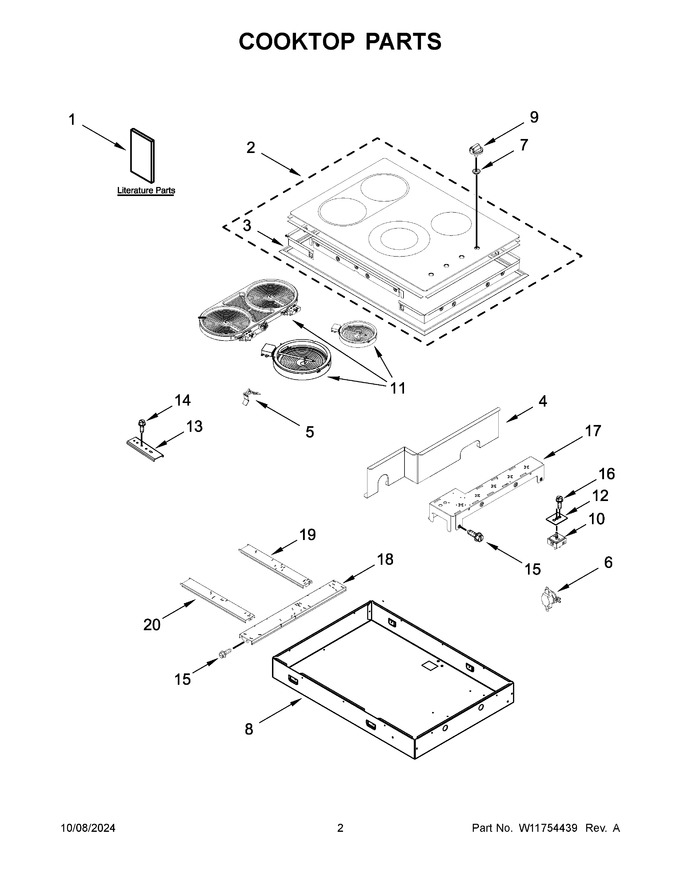

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11439185 | Installation Instructions |
|
- | |||||
| 2 | W11266546 | Cooktop (black) (Replaces: W11120984) |
|
$ 461.20 | |||||
| 3 | ARI385331C9D38B9273C1BC8577B069F210 | Trim, Stainless (not Serviced) |
|
- | |||||
| 4 | W11302589 | Shield, Switch (Replaces: W11110724) |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 6 | W10464566 | Switch, Tod High Limit |
|
Immediately | $ 167.81 | ||||
| 7 | WPW10293874 | Grommet (black) (Replaces: W10293874) |
|
Immediately | $ 7.25 | ||||
| 8 | ARI55514D8BCAB29AE100450EFDED77D6CF | Box, Burner (not Serviced) |
|
- | |||||
| 9 | W11845346 | Knob, Control (black) (Replaces: W10895122) |
|
$ 44.99 | |||||
| 10 | W10857622 | Switch, Infinite (left Front And Right Front) (Replaces: W10437092) |
|
Immediately | $ 190.52 | ||||
| 11 | WPW10248259 | Element, Bridge (left Front And Left Rear) (Replaces: W10248259) |
|
$ 320.70 | |||||
| 12 | 3183956 | Seal, Switch Cover |
|
$ 41.81 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 15 | 7101P42660 | Screw |
|
- | |||||
| 16 | 7101P30960 | Screw |
|
- | |||||
| 17 | W11302595 | Plate, Switch (Replaces: W11215835) |
|
$ 65.91 | |||||
| 18 | W11102042 | Rail, Vertical |
|
$ 17.47 | |||||
| 19 | W11302597 | Rail, Horizontal Rear (Replaces: W11106009) |
|
- | |||||
| 20 | W11302594 | Rail, Horizontal Front (Replaces: W11110714) |
|
- | |||||
| 10A | W11661906 | Switch, Infinite (left Rear) (Replaces: W10843843) |
|
Immediately | $ 17.63 | ||||
| 10B | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 94.18 | ||||
| 11A | W11517959 | Element (3000 And 1400w) (right Front) (Replaces: W10275048) |
|
Immediately | $ 121.00 | ||||
| 11B | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 1A | W11245478 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W11255747 | Use & Care Guide |
|
- | |||||
| 1C | W11238363 | Diagram, Wiring |
|
- | |||||
| 2A | W11266551 | Cooktop (stainless) (Replaces: W11120985) |
|
$ 706.68 | |||||
| 9A | W10859808 | Knob, Control (stainless) |
|
$ 68.90 | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.33 | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 105.67 | ||||
| NI | 7101P52060 | Screw |
|
- | |||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 6.47 | |||||
| NI | W11110551 | Harness, Main |
|
$ 220.52 | |||||
| NI | W11684785 | Insulation, Cooktop (knob) (Replaces: W11161211) |
|
- | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | 7103P02760 | Nut |
|
- |
