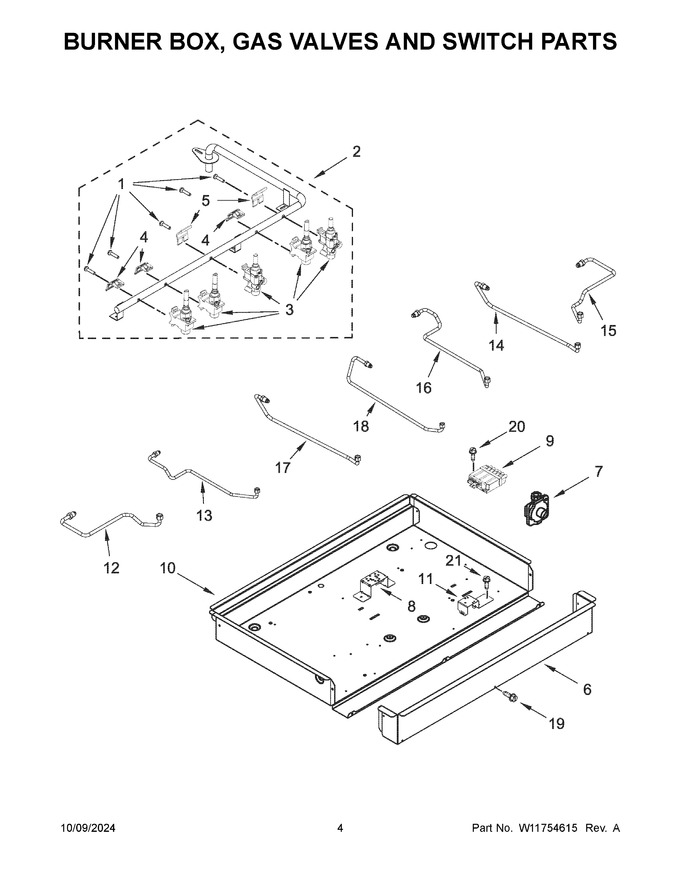

03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8287057 | Screw (Replaces: W10743274) |
|
$ 10.15 | |||||
| 2 | W10682075 | Assembly, Manifold |
|
$ 376.04 | |||||
| 3 | W11702872 | Valve, Single (left Front And Center) (Replaces: W11629615) |
|
$ 26.90 | |||||
| 4 | 8287055 | Bracket, Single Valve |
|
$ 65.54 | |||||
| 5 | 8287056 | Bracket, Dual Valve |
|
- | |||||
| 6 | W10716840 | Panel, Front (Replaces: W10705475) |
|
- | |||||
| 7 | W11087445 | Regulator, Pressure (Replaces: W10449143) |
|
Immediately | $ 177.34 | ||||
| 8 | W10594429 | Bracket, Orifice Holder |
|
$ 20.00 | |||||
| 9 | WPW10475150 | Module, Spark (Replaces: W10475150) |
|
Immediately | $ 219.54 | ||||
| 10 | W10710917 | Box, Burner |
|
- | |||||
| 11 | W10545802 | Bracket, Dual Burner |
|
$ 19.29 | |||||
| 12 | W10545796 | Tubing, Gas Burner (left Front) |
|
$ 70.85 | |||||
| 13 | W10545797 | Tubing, Gas Burner (left Rear) |
|
$ 70.60 | |||||
| 14 | W10545843 | Tubing, Gas Burner (right Front, Main) |
|
$ 72.72 | |||||
| 15 | W10545844 | Tubing, Gas Burner (right Front, Simmer) |
|
$ 73.55 | |||||
| 16 | W10545798 | Tubing, Gas Burner (right Rear) |
|
$ 75.20 | |||||
| 17 | W10545801 | Tubing, Gas Burner (center, Main) |
|
$ 71.31 | |||||
| 18 | W10545800 | Tubing, Gas Burner (center, Simmer) |
|
$ 71.30 | |||||
| 19 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 20 | 7101P62660 | Screw |
|
- | |||||
| 21 | W10443110 | Screw |
|
Immediately | $ 13.07 | ||||
| 3A | W11702873 | Valve, Single (left Rear) (Replaces: W11629616) |
|
$ 26.00 | |||||
| 3B | W11706266 | Valve, Dual (right Front And Center) (Replaces: W11629618) |
|
Immediately | $ 114.08 | ||||
| 3C | W11703063 | Valve, Single (right Front And Right Rear) (Replaces: W11629617) |
|
$ 26.00 | |||||
| NI | 7101P06260 | Screw (for Tie Down Bracket) |
|
- | |||||
| NI | W10577591 | Harness, Main |
|
$ 83.10 | |||||
| NI | W11804917 | Harness, Switch (Replaces: W10619020) |
|
Immediately | $ 535.05 | ||||
| NI | W10392003 | Cord, Power |
|
$ 138.57 | |||||
| NI | W10132200 | Relief, Strain |
|
- | |||||
| NI | 3801F93551 | Bracket, Tie Down |
|
- | |||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 6.47 | |||||
| NI | 7208P02460 | Seal, Manifold Pipe Inlet |
|
- | |||||
| NI | W10853432 | Kit, Lp Conversion (Replaces: W10676662) |
|
Immediately | $ 74.21 |
