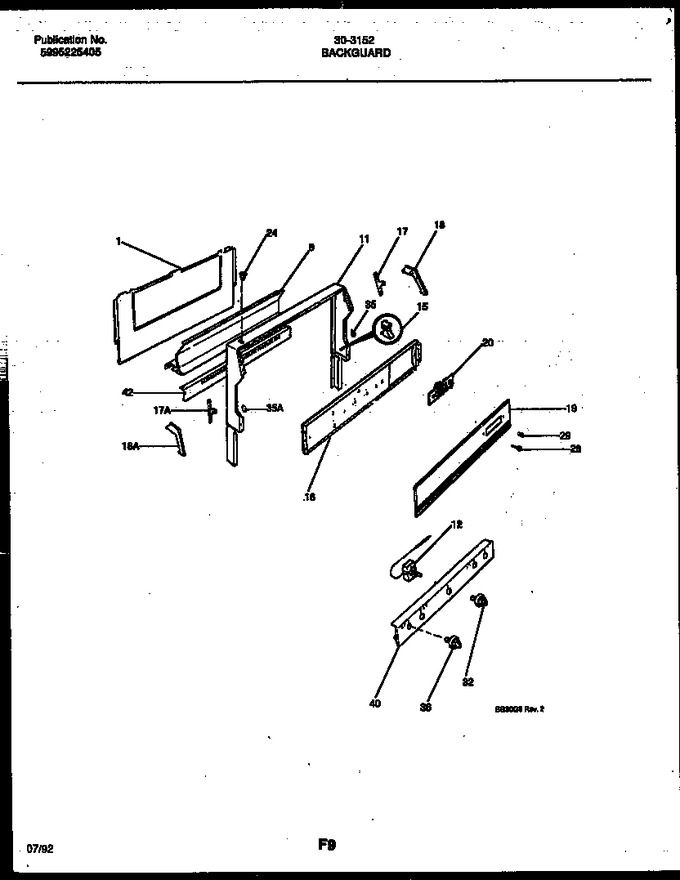

02 - Backguard
03 - Burner, Manifold And Gas Control
04 - Body Parts
05 - Cooktop And Broiler Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131123 | Shield-backguard,rear Wall |
|
- | |||||
| 9 | 3201701 | Trim-splasher, White |
|
- | |||||
| 11 | 3204764 | Trim-wrapper |
|
- | |||||
| 12 | 316032411 | Thermostat-oven (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 15 | 5303131237 | Support, Backguard |
|
- | |||||
| 16 | 316042601 | Plate,instrument Mtg |
|
- | |||||
| 17 | 3204754 | Trim-glass Retainer,rh |
|
- | |||||
| 18 | 3204747 | Cap-end Rh |
|
- | |||||
| 19 | 5303274448 | Panel-control, Glass |
|
- | |||||
| 20 | 5303272309 | Clock/timer, Electronic |
|
- | |||||
| 24 | 5303208662 | Switch-oven Light, Rocker |
|
- | |||||
| 28 | 5303272306 | Push Button, Clock Set, Black |
|
- | |||||
| 29 | 5303272305 | Button-clock/timer, Selector, Black |
|
$ 38.80 | |||||
| 32 | 3205115 | Knob, Thermostat |
|
- | |||||
| 35 | 3203077 | Cap End-rh |
|
- | |||||
| 36 | 5303209616 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 316009230 | Panel-manifold |
|
- | |||||
| 42 | 3131241 | Trim-vent |
|
- | |||||
| 17A | 3204753 | Trim-glass Retainer,lh |
|
- | |||||
| 18A | 3204746 | Cap-end Lh |
|
- | |||||
| 35A | 3203076 | Cap End-lh |
|
- |
